Connector FFC/FPC

B-Series Pitch 0.5

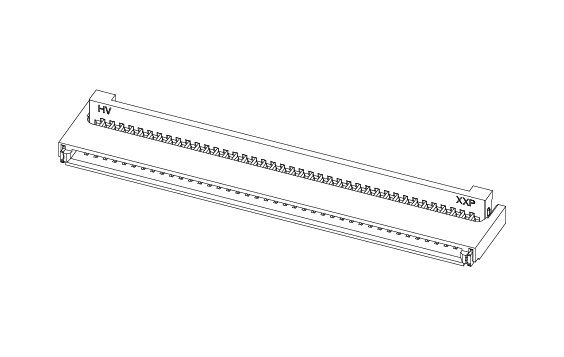

FCC-B54 (Halogen-Free)

  1. Pitch 0.50 mm, 04~50 pin
  2. SMT Type (With Holder)
  3. Dim.:〔(Pin*0.5)+2.0〕L x 4.00 W x 0.95 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Horizontal, Top & Bottom Contact Type
  6. Back ZIF Type

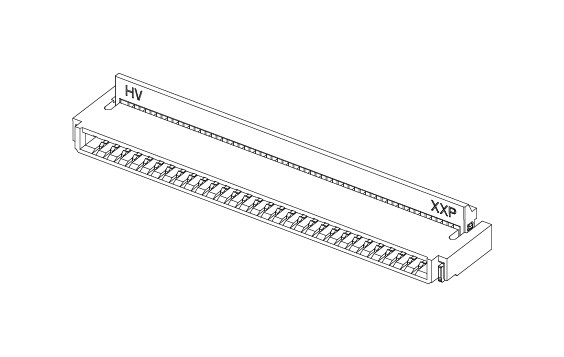

FCC-B56 (Halogen-Free)

  1. Pitch 0.50 mm, 04~32 pin
  2. SMT Type (With Holder)
  3. Dim.:〔(Pin*0.5)+2.00〕L x 4.17 W x 1.00 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Horizontal, Top & Bottom Contact Type
  6. Back ZIF Type

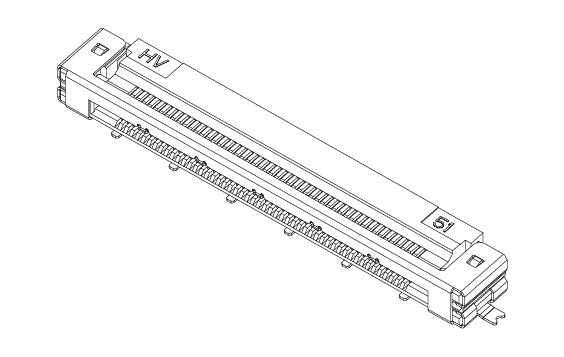

FCC-B57 (Halogen-Free)

  1. Pitch 0.50 mm, 41 pin、51 pin
  2. SMT Type (With Holder)
  3. Dim.:〔(Pin*0.5)+9.86〕L x 4.98 W x 2.91 H mm
  4. FPC/FFC Thickness: 0.30 mm, with buckle
  5. Operation: Horizontal, Bottom Contact Type
  6. Back ZIF Type
