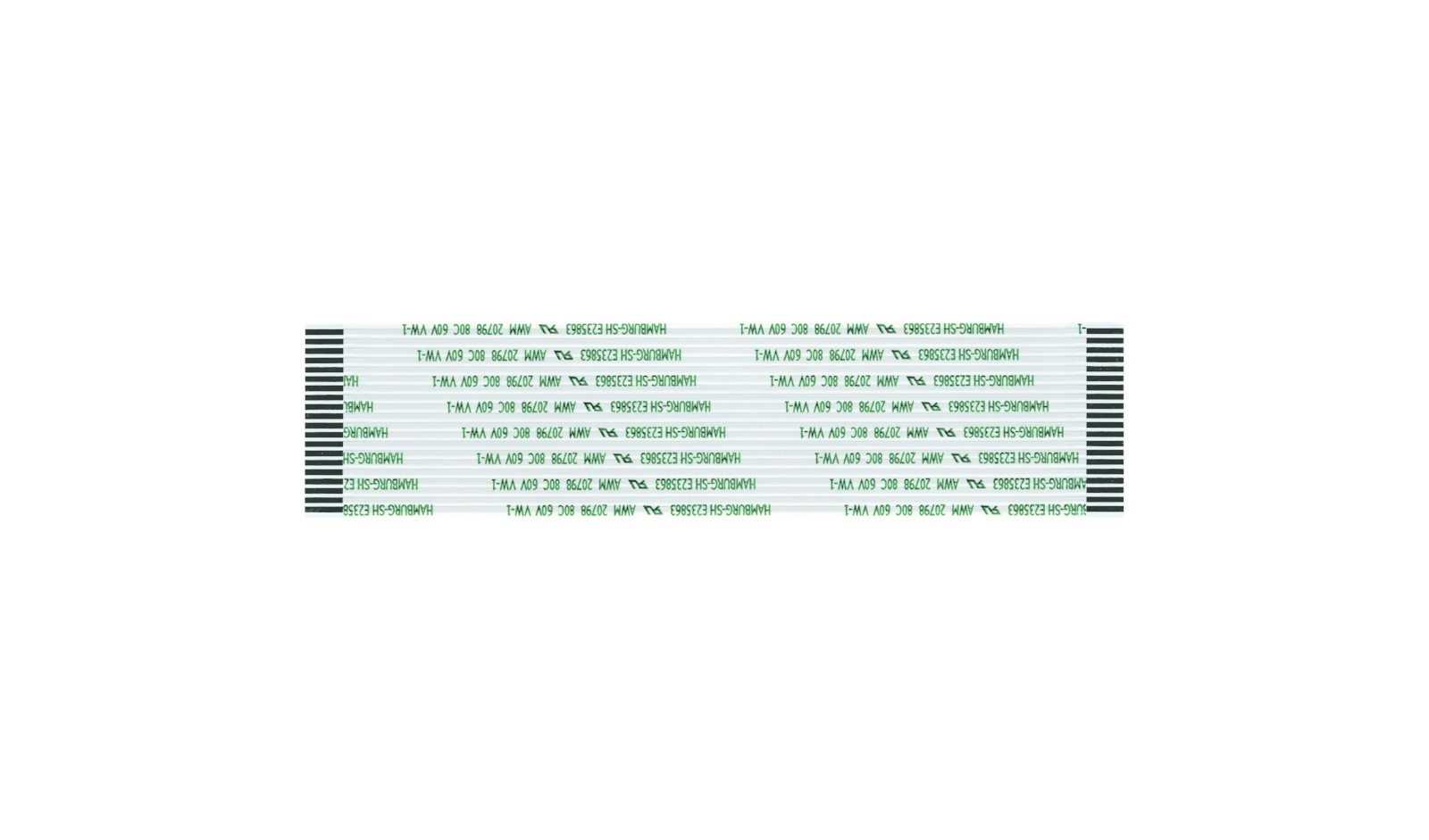

FFC

0.3 pitch

1. • It has 20 conductors.
2. • "Pitch" means the distance between center of a conductor and next one.

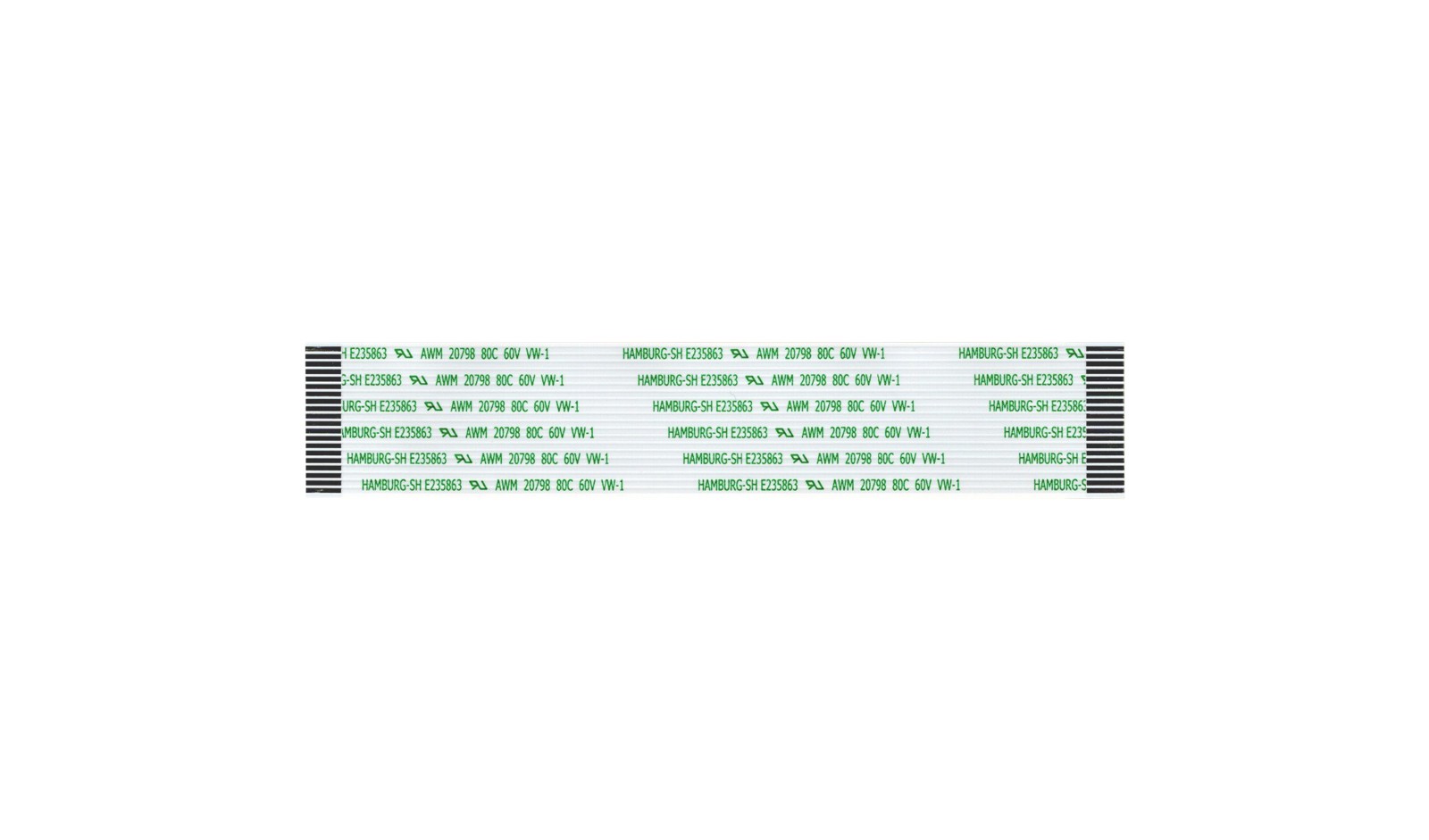

FFC

0.5 pitch

1. • It has 20 conductors.
2. • "Pitch" means the distance between center of a conductor and next one.

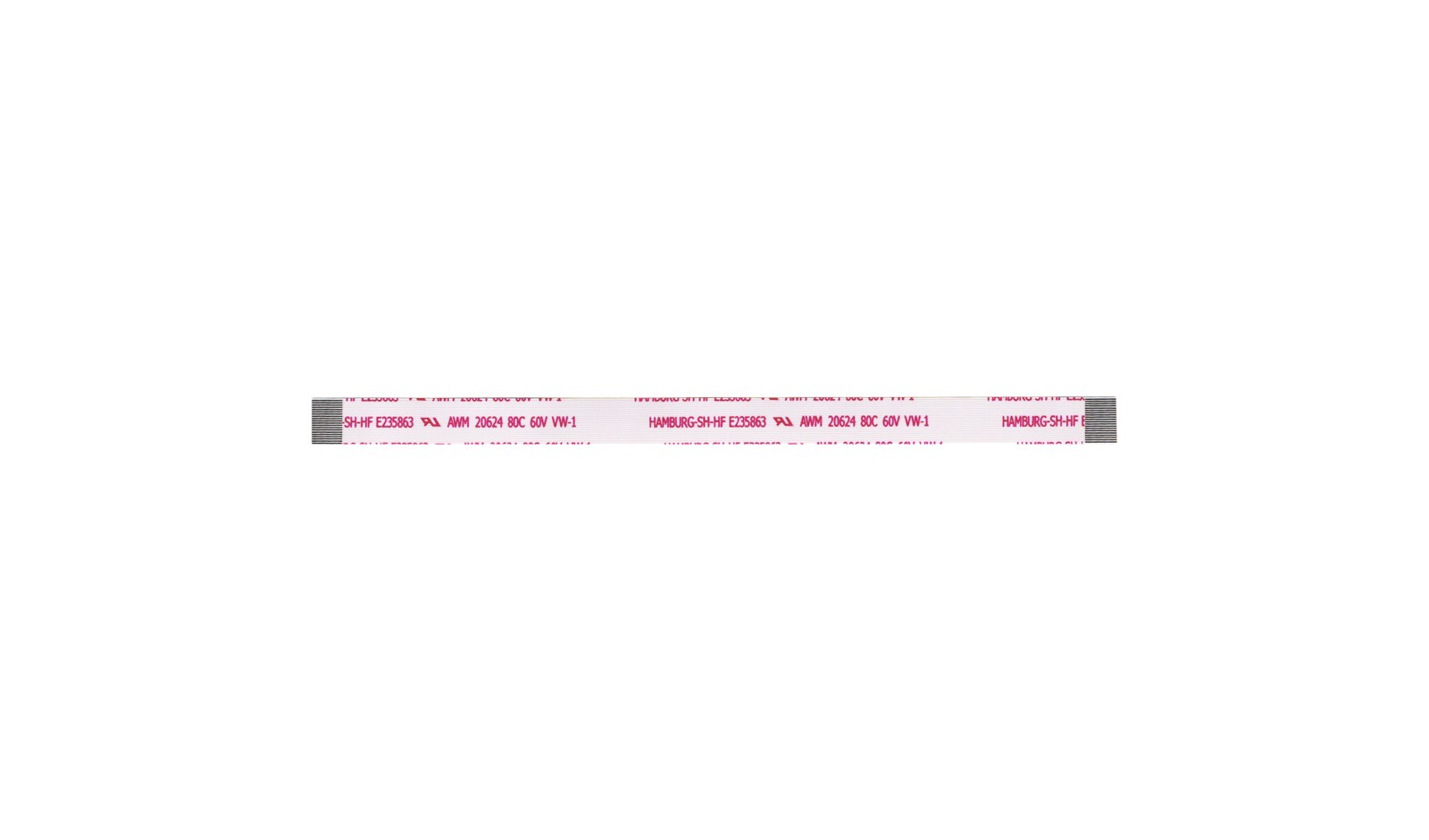

FFC

1.0 pitch

1. • It has 20 conductors.
2. • "Pitch" means the distance between center of a conductor and next one.

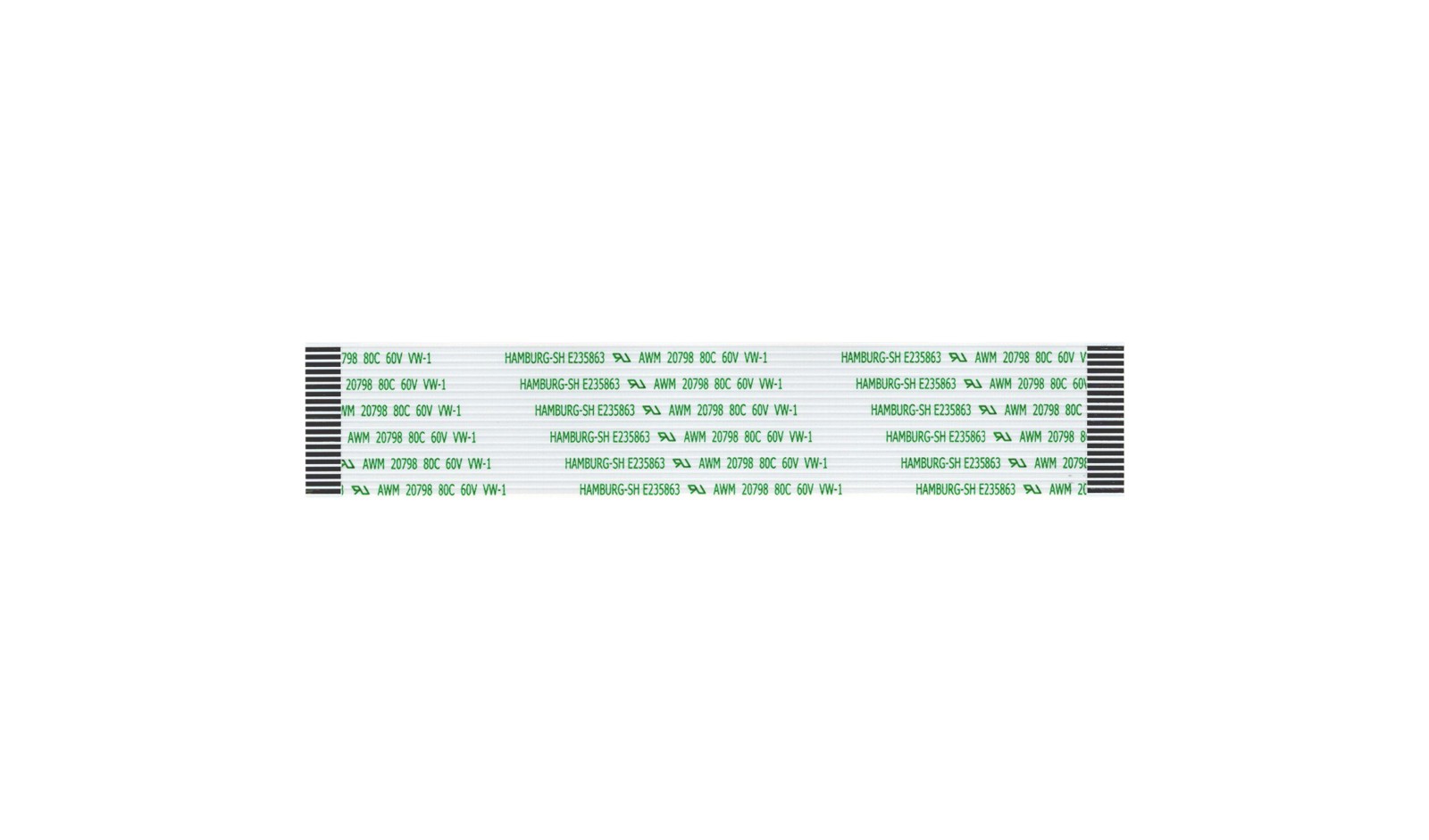

FFC

1.25 pitch

1. • It has 20 conductors.
2. • "Pitch" means the distance between center of a conductor and next one.

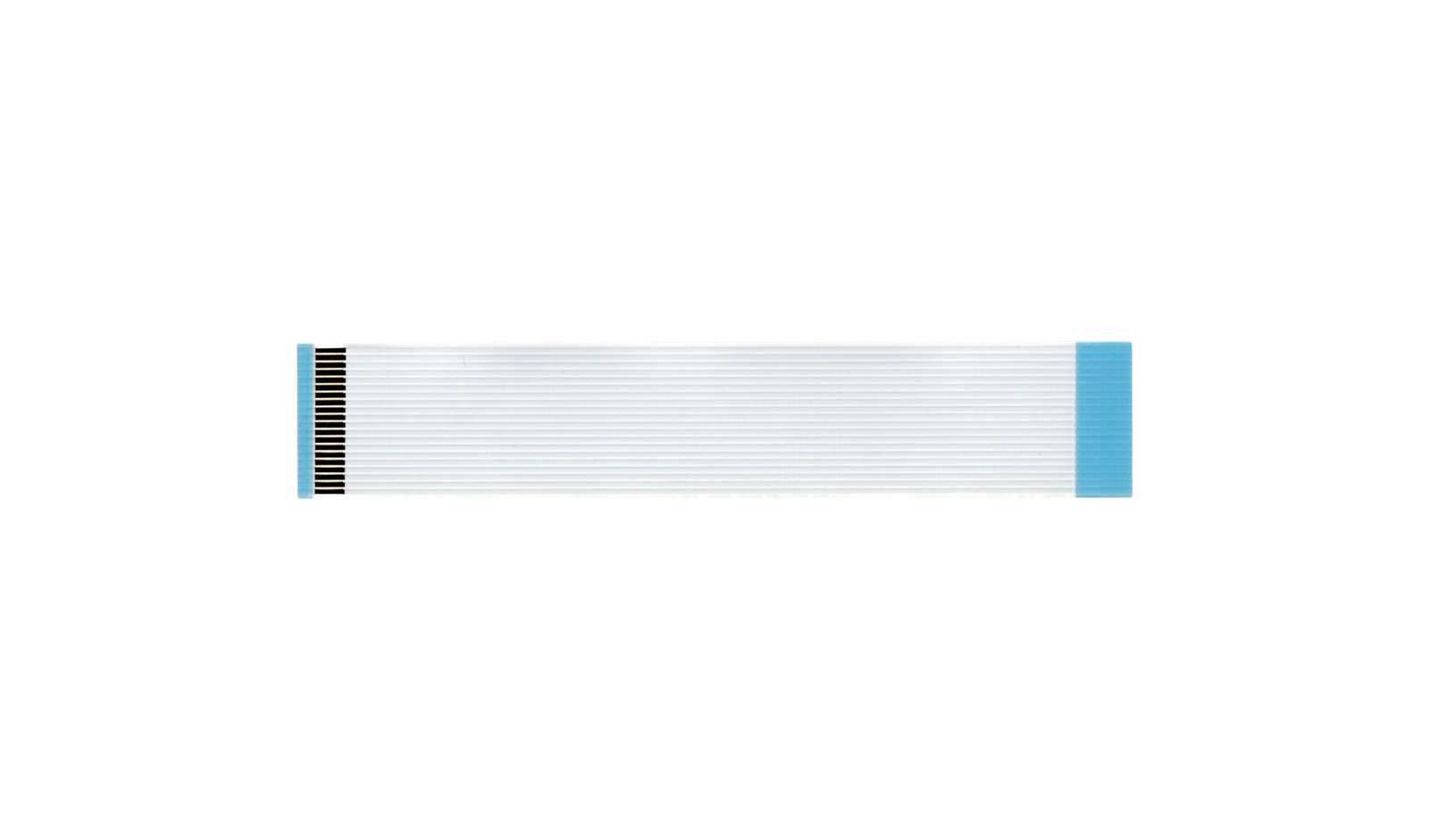

FFC

A type

1. • It is 1.0mm pitch type.
2. • Stripped at both ends on two sides with Reinforcements on the same side.

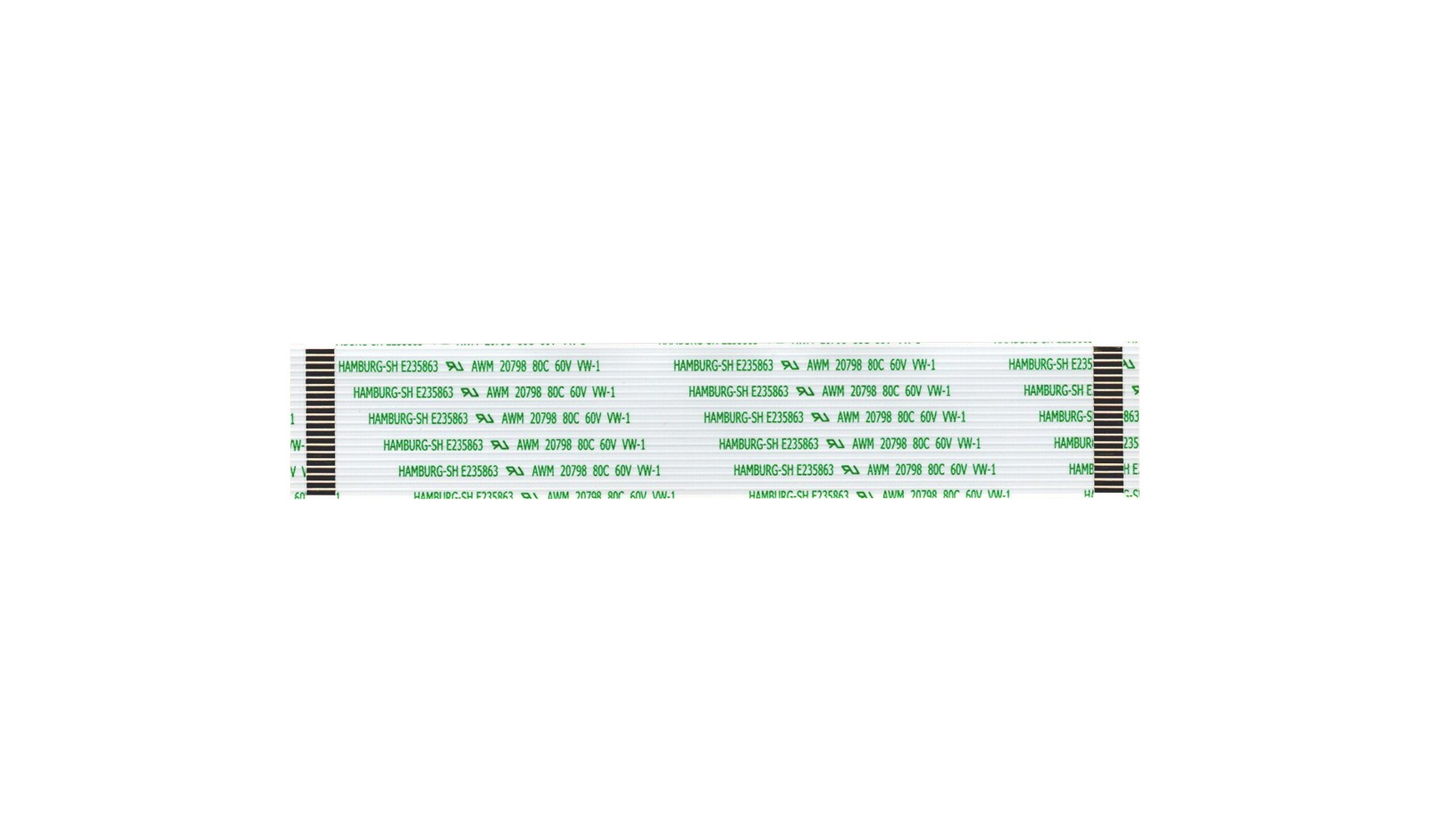

FFC

B type

1. • It is 1.0mm pitch type.
2. • Stripped at both ends on one sides with reinforcements on opposite sides.

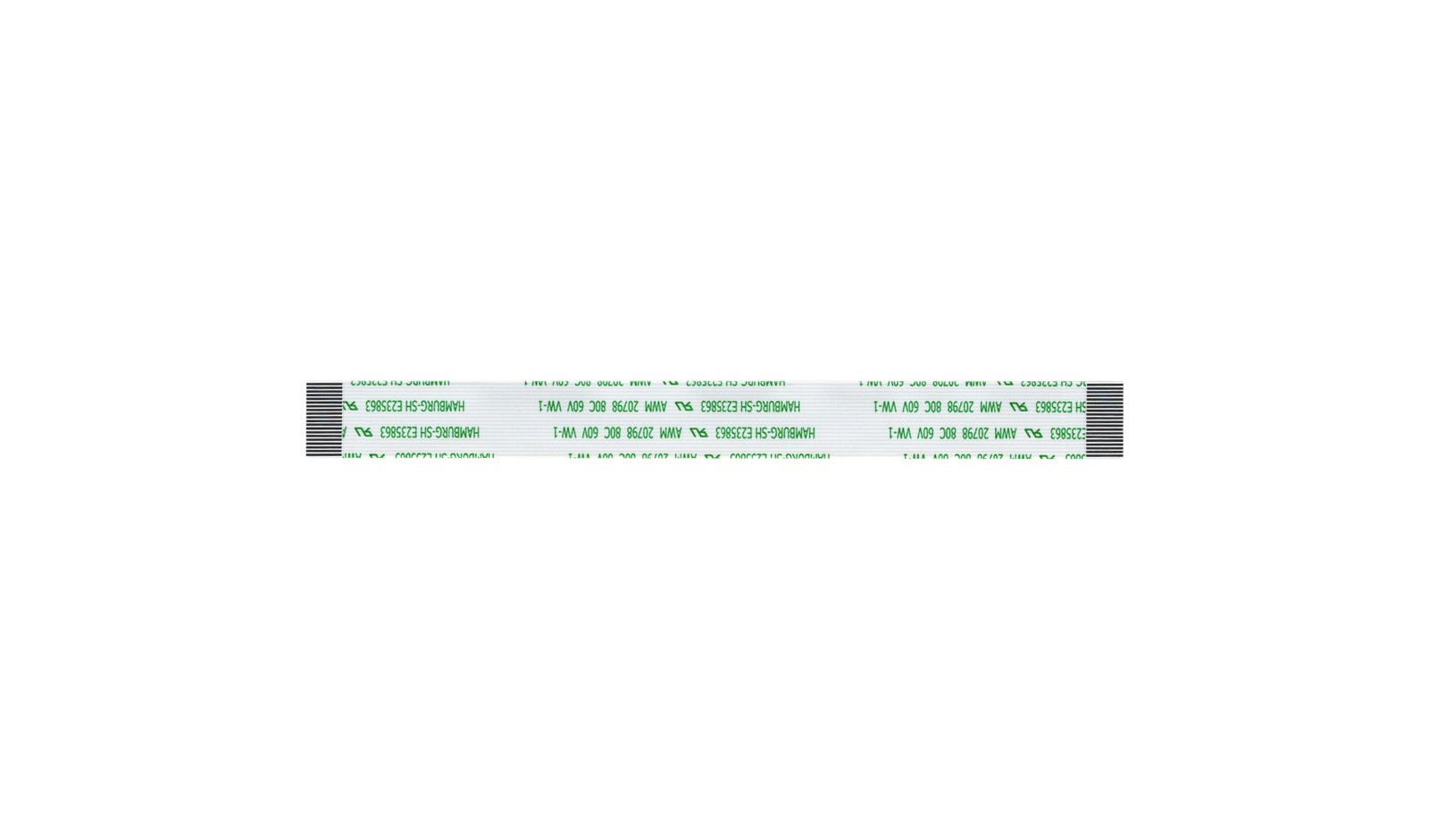

FFC

E type

1. • It is 1.0mm pitch type.
2. • E type can be soldered directly onto PCBs.
3. • Stripped on one side with reinforcements on one side.

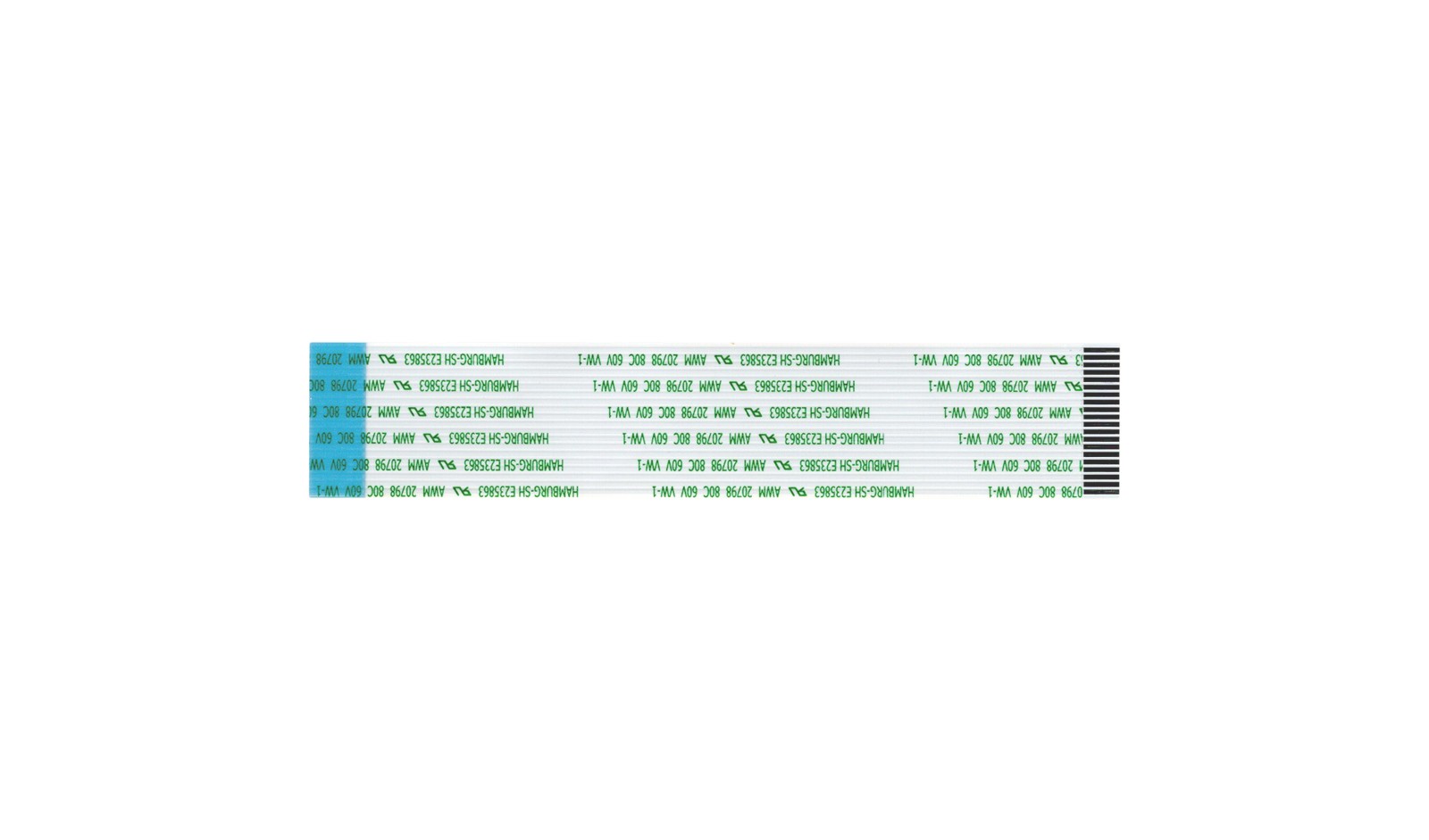

FFC

F type

1. • It is 1.0mm pitch type.
2. • F type can be soldered directly onto PCBs.
3. • Stripped at both ends on two sides without reinforcements.
