Smart Card Connector

700 Series

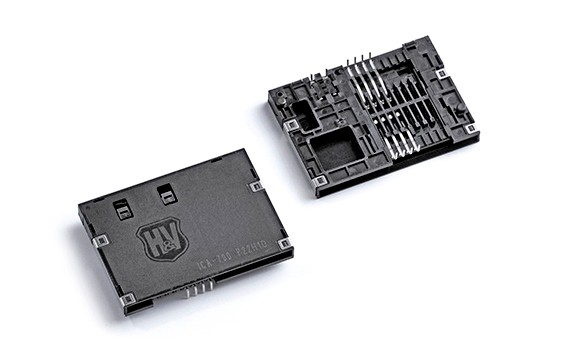

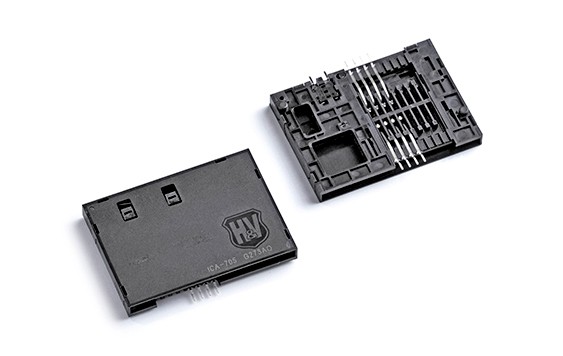

ICA-700 Type1 DIP

PDF Download
  1. 8, 16 pin
  2. DIP Type (with post)
  3. Sealed Switch: Normally Open
  4. Dim.: 55.50L x 40.00W x 5.80H mm
  5. Durability: 200,000 cycles min.

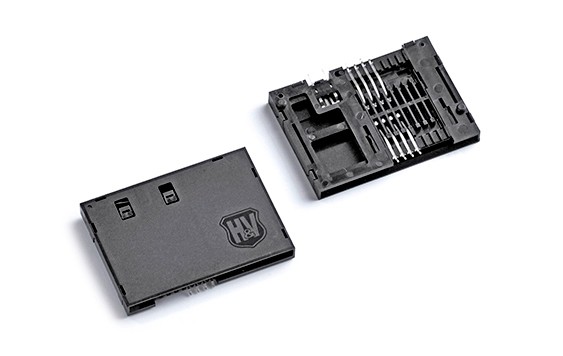

ICA-700 Type1 SMT

PDF Download
  1. 8, 16 pin
  2. SMT Type (with post)
  3. Sealed Switch: Normally Open
  4. Dim.: 55.50L x 40.00W x 5.80H mm
  5. Durability: 200,000 cycles min

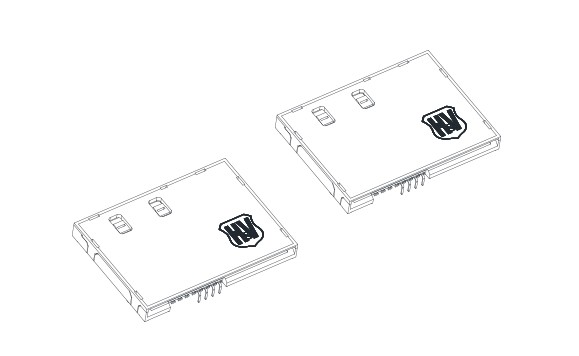

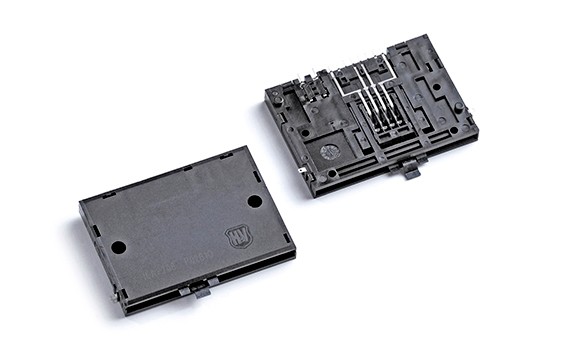

ICA-700 Type2 DIP

PDF Download
  1. 8 pin
  2. DIP Type (with post)
  3. Sealed Switch: Normally Open
  4. Dim.: 55.90L x 40.00W x 5.80H mm
  5. Durability: 200,000 cycles min.

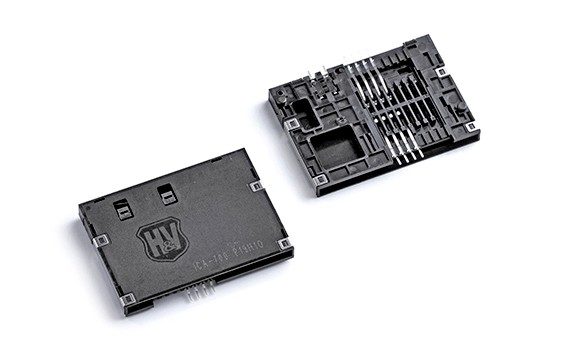

ICA-700 Type2 SMT

PDF Download
  1. 8 pin
  2. SMT Type (with post)
  3. Sealed Switch: Normally Open
  4. Dim.: 55.90L x 40.00W x 5.80H mm
  5. Durability: 200,000 cycles min.

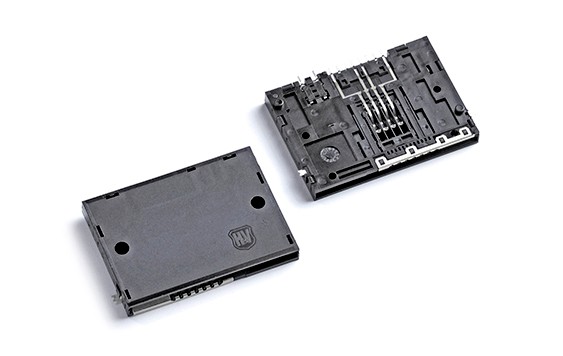

ICA-703 DIP

PDF Download
  1. 8 pin
  2. DIP Type (with post)
  3. Blade Switch: Normally Open
  4. Dim.: 55.50L x 40.00W x 5.80H mm
  5. Durability: 500,000 cycles min.

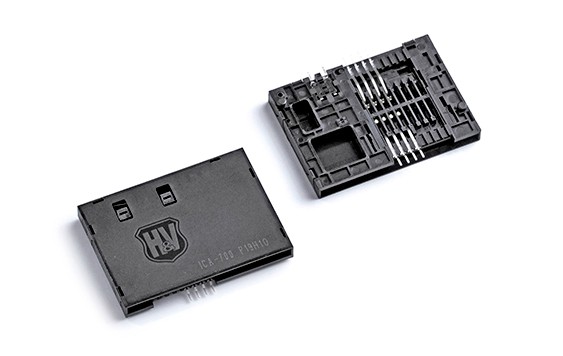

ICA-703 SMT

PDF Download
  1. 8 pin
  2. SMT Type (with post)
  3. Blade Switch: Normally Open
  4. Dim.: 55.50L x 40.00W x 5.80H mm
  5. Durability: 500,000 cycles min.

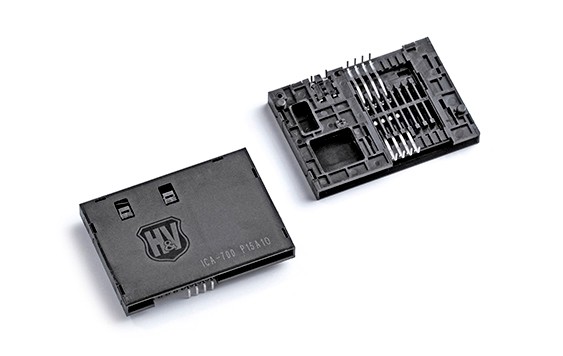

ICA-705 DIP

PDF Download
  1. 8 pin
  2. DIP Type (with post)
  3. Sealed Switch: Normally Open
  4. Dim.: 55.50L x 40.00W x 5.80H mm
  5. Durability: 500,000 cycles min.

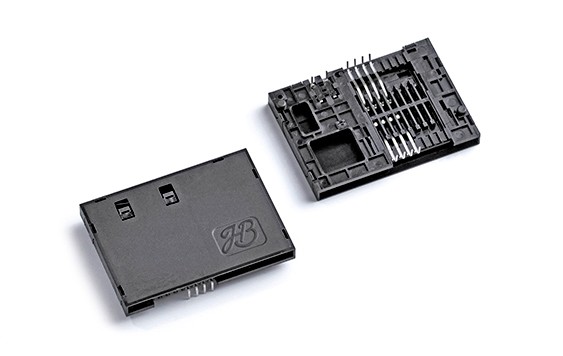

ICA-705 SMT

PDF Download
  1. 8 pin
  2. SMT Type (with post)
  3. Sealed Switch: Normally Open
  4. Dim.: 55.50L x 40.00W x 5.80H mm
  5. Durability: 500,000 cycles min.

ICA-706

PDF Download
  1. 8 pin
  2. SMT Type (with post)
  3. Sealed Switch: Normally Open
  4. Dim.: 56.10L x 40.00W x 6.20H mm
  5. Durability: 500,000 cycles min.
  6. PCI Compliant

ICA-706 Type3

PDF Download
  1. 8 pin
  2. SMT Type (with post)
  3. Sealed Switch: Normally Open
  4. Dim.: 56.10L x 40.00W x 6.20H mm
  5. PCI Compliant
  6. Durability: 500,000 cycles min.
