Smart Card Connector

N Series

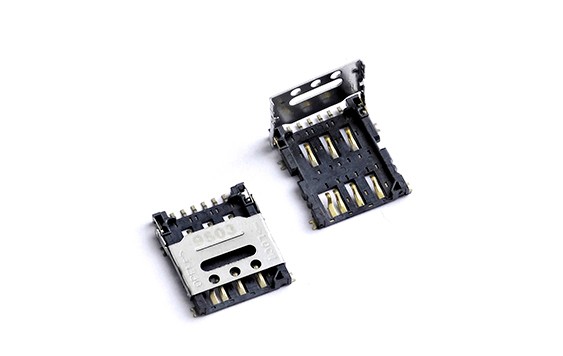

ICC-N01

PDF Download
  1. 6 pin
  2. SMT Type (without post)
  3. Dim.: 14.00L x 11.70W x 1.50H mm
  4. Metal Cover: Hinge Type

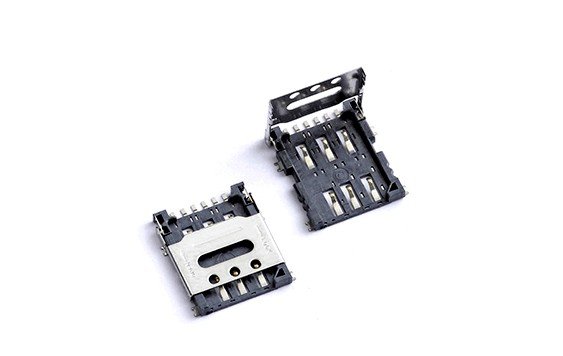

ICC-N05

PDF Download
  1. 6 pin
  2. SMT Type (sink 1.08mm)
  3. Dim.: 14.35L x 11.50W x 1.50H mm
  4. Blade Switch: Normally Open
  5. Metal Cover: with Tray Type
  6. (Connector with Tray, Plastic material)
  7. Durability: 3,000 cycles min.

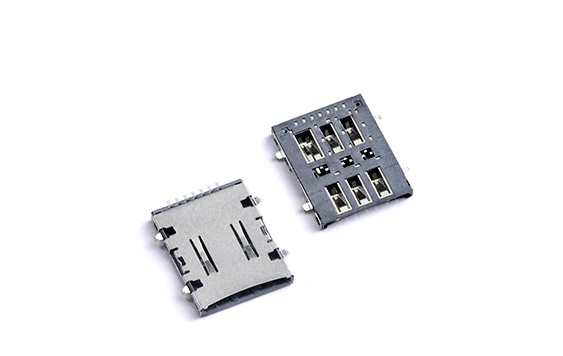

ICC-N06

PDF Download
  1. 6 pin
  2. SMT Type (with post)
  3. Dim.: 12.30L x 10.05W x 1.35H mm
  4. Metal Cover: Push Pull Type
  5. Durability: 3,000 cycles min.

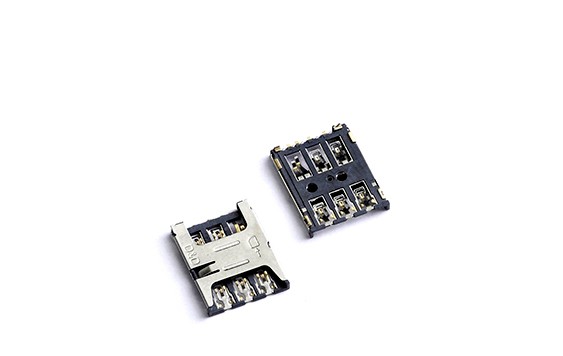

ICC-N08

PDF Download
  1. 6 pin
  2. SMT Type (with post)
  3. Dim.: 13.72L x 12.29W x 1.37H mm
  4. Blade Switch: Normally Close
  5. Metal Cover: Push Push Type

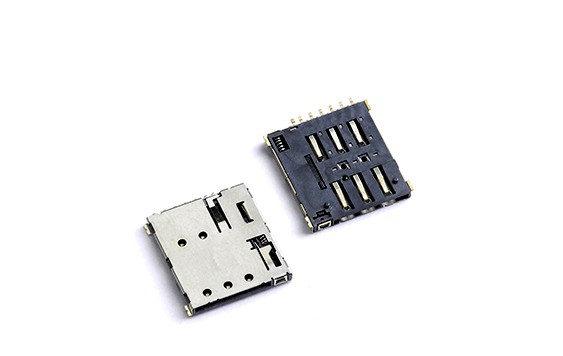

ICC-N10

PDF Download
  1. 6 pin
  2. SMT Type (without post)
  3. Dim.: 14.00L x 11.70W x 1.40H mm
  4. Blade Switch: Normally Open
  5. Metal Cover: Hinge Type
  6. Durability: 5,000 cycles min.
