Connector FFC/FPC

A-Series Pitch 1.0

FCC-A00 SMT

  1. Pitch 1.0mm, 04~40 pin
  2. SMT Type (staggered)
  3. Dim.:〔(Pin*1.0)+3.0〕L x 3.00 W x 5.20 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Vertical, Normal Type
  6. Non-ZIF Type

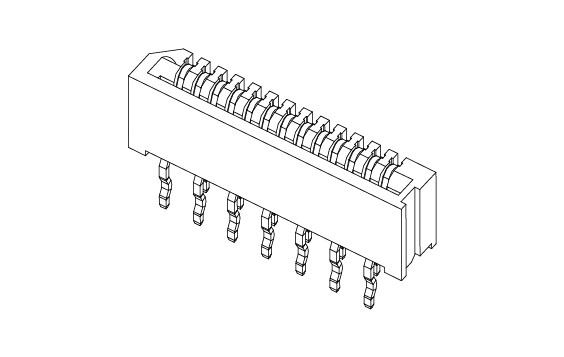

FCC-A00 DIP

  1. Pitch 1.0mm, 04~40 pin
  2. DIP Type (Normal Type)
  3. Dim.:〔(Pin*1.0)+3.0〕L x 3.00 W x 5.10 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Vertical, Normal Type
  6. Non-ZIF Type

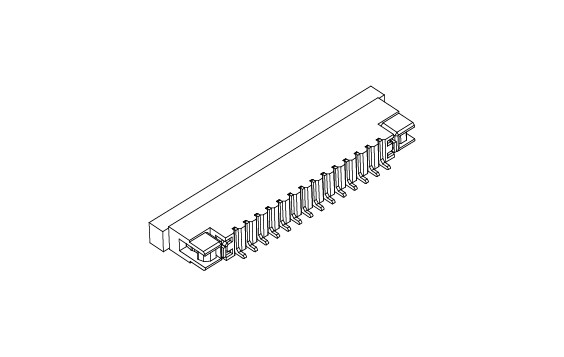

FCC-A01 SMT

  1. Pitch 1.0mm, 04~30pin
  2. SMT Type (With Holder)
  3. Dim.:〔(Pin*1.0)+3.6〕L x 4.75 W x 3.00 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Horizontal, Top Contact Type
  6. Non-ZIF Type

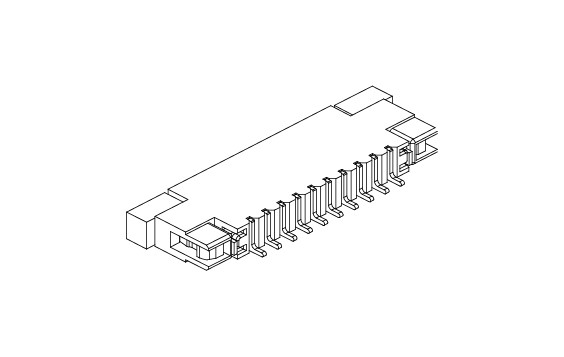

FCC-A01 SMT TYPE2

  1. Pitch 1.0mm, 04~30 pin
  2. SMT Type (With Holder)
  3. Dim.:〔(Pin*1.0)+3.0〕L x 4.75 W x 3.00 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Horizontal, Top Contact Type
  6. Non-ZIF Type

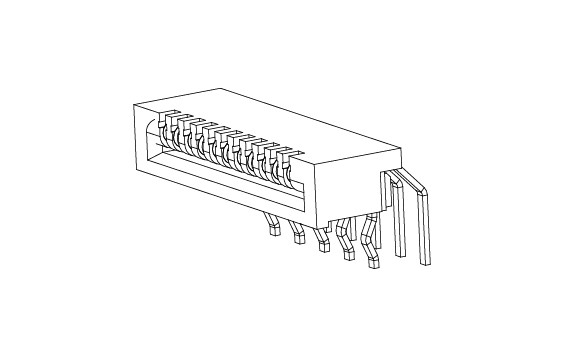

FCC-A01 DIP

  1. Pitch 1.0mm, 04~30 pin
  2. DIP Type (Normal & Reverse Type)
  3. Dim.:〔(Pin*1.0)+3.6〕L x 4.75 W x 2.90 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Horizontal, Top Contact Type
  6. Non-ZIF Type

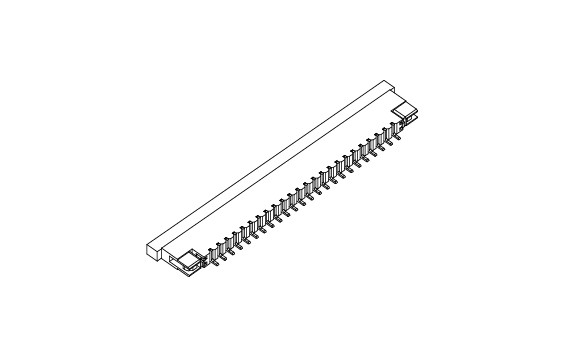

FCC-A02 SMT (Halogen-Free)

  1. Pitch 1.0mm, 04~32 pin
  2. SMT Type (With Holder)
  3. Dim.:〔(Pin*1.0)+6.0〕L x 4.80 W x 1.95 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Horizontal, Top Contact Type
  6. Slider Type

FCC-A02 TYPE2 (Halogen-Free)

  1. Pitch 1.0mm, 04~32 pin
  2. SMT Type (With Holder)
  3. Dim.:〔(Pin*1.0)+6.0〕L x 4.80 W x 1.95 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Horizontal, Top Contact Type
  6. Slider Type

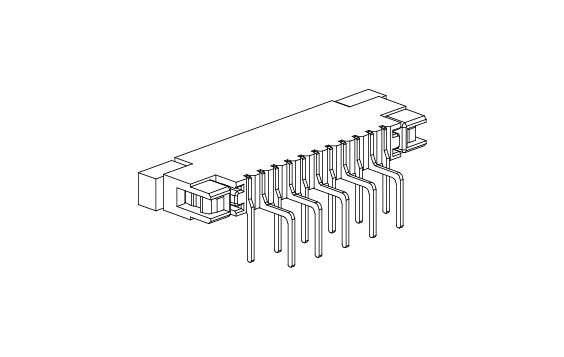

FCC-A02 DIP (Halogen-Free)

  1. Pitch 1.0mm, 04~32 pin
  2. DIP Type (Reverse Type)
  3. Dim.:〔(Pin*1.0)+6.0〕L x 4.80 W x 1.90 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Horizontal, Top Contact Type
  6. Slider Type

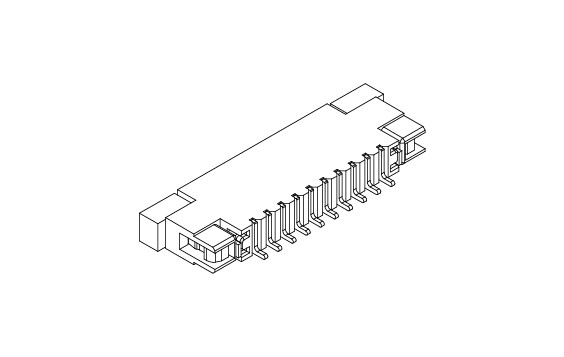

FCC-A03(Halogen-Free)

  1. Pitch 1.0mm, 04~32 pin
  2. SMT Type (With Holder)
  3. Dim.:〔(Pin*1.0)+3.0〕L x 4.80 W x 1.95 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Horizontal, Bottom Contact Type
  6. Slider Type

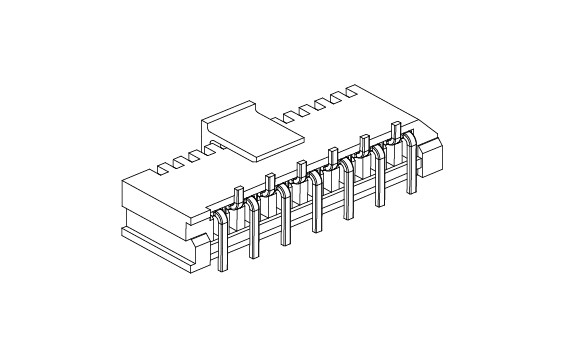

FCC-A03 TYPE2 (Halogen-Free)

  1. Pitch 1.0mm, 04~32 pin
  2. SMT Type (With Holder)
  3. Dim.:〔(Pin*1.0)+3.0〕L x 4.80 W x 1.95 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Horizontal, Bottom Contact Type
  6. Slider Type
