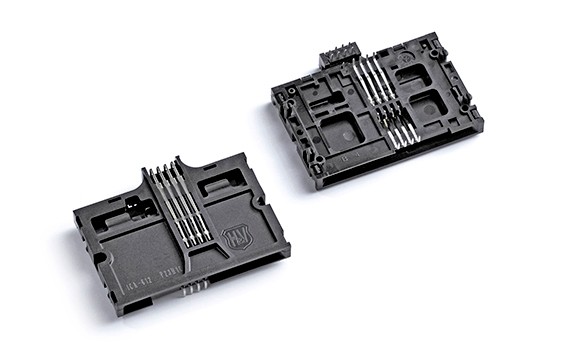

Smart Card Connector

600 Series EMV+NDS

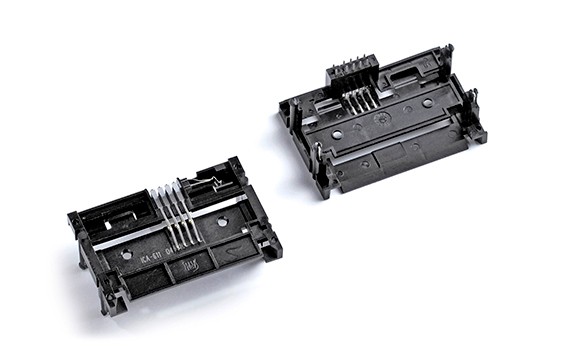

ICA-611

PDF Download
  1. 8 pin
  2. DIP Type
  3. PCI Compliant ,Reverse Type
  4. Blade Switch: Normally Close
  5. Dim.: 61.10L x 40.00W x H mm

    6. Dim.

Base Standoff Total "H"
5.90 0.00 5.90
5.90 1.90 7.80
5.90 3.00 8.90
5.90 4.75 10.65
5.90 5.55 11.45
5.90 10.00 15.90
5.90 17.10 23.00

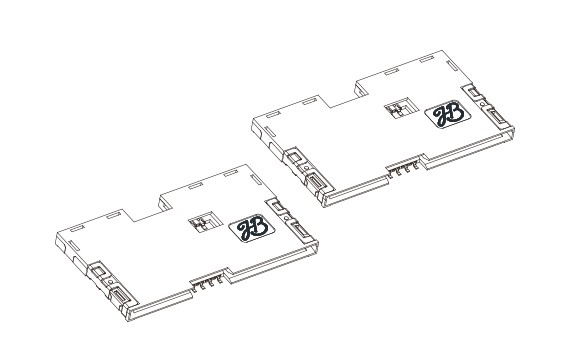

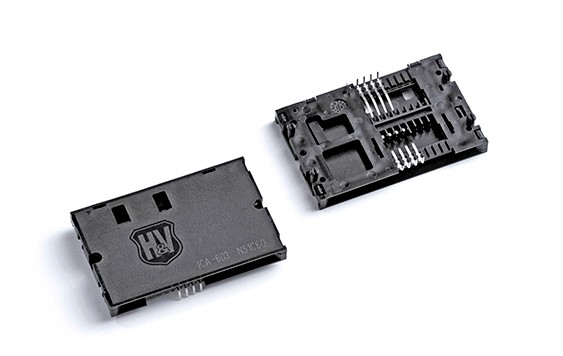

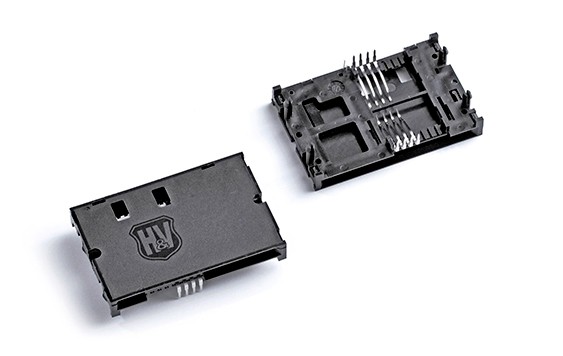

ICA-603

PDF Download
  1. 8 pin
  2. DIP Type
  3. Blade Switch: Normally Open or Close
  4. Dim.: 62.00L x 40.00W x 6.25H mm

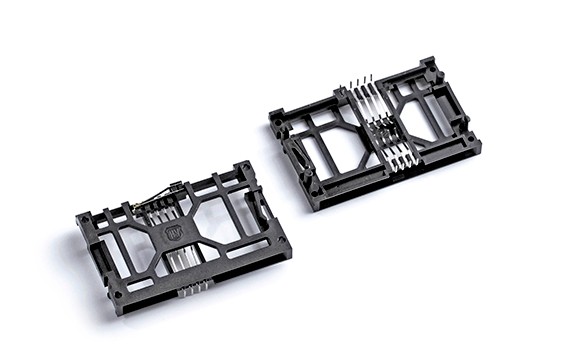

ICA-609 Type1

PDF Download
  1. 8 pin
  2. DIP Type (board lock*2)
  3. Blade Switch: Normally Open or Close
  4. Dim.: 62.00L x 40.00W x 6.25H mm

ICA-609 Type2

PDF Download
  1. 8 pin
  2. DIP Type (board lock*4)
  3. Blade Switch: Normally Open or Close
  4. Dim.: 62.00L x 40.00W x 6.25H mm

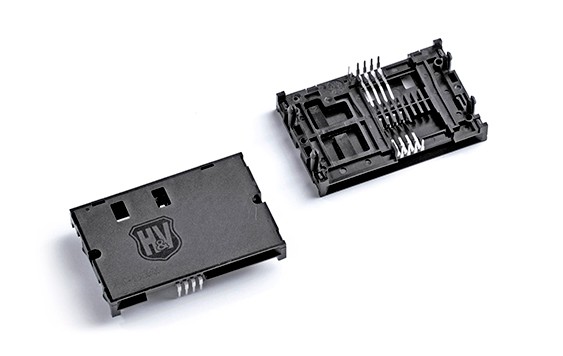

ICA-612

PDF Download
  1. 16 pin (double row data contacts)
  2. DIP Type, Normal & Reverse Type
  3. Blade Switch: Normally Close (both side)
  4. Dim.: 62.00L x 48.00W x 8.15/8.70H mm
  5. Standoff= 0.00, 0.55 mm

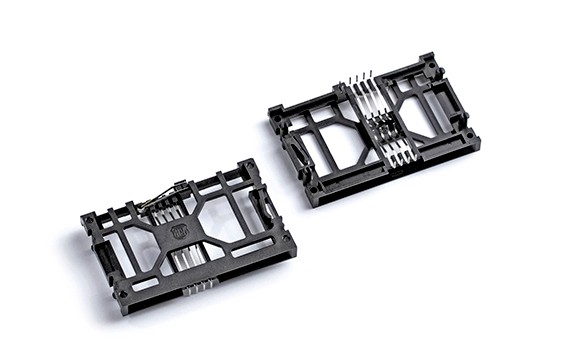

ICA-613

PDF Download
  1. 8 pin
  2. DIP Type
  3. Blade Switch: Normally Open or Close
  4. Dim.: 62.00L x 40.00W x 6.80/9.15H mm
  5. Standoff= 0.65, 3.00 mm

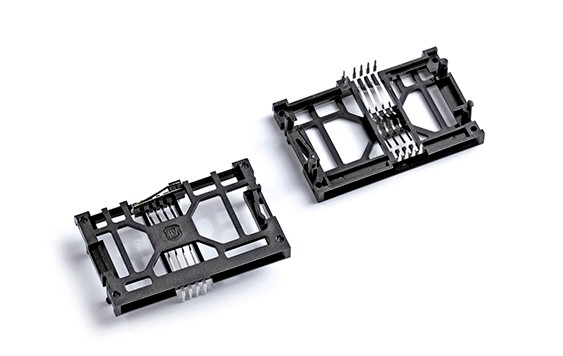

ICA-615

PDF Download
  1. 8 pin
  2. DIP Type
  3. Blade Switch: Normally Close
  4. Dim.: 62.00L x 40.00W x 9.15H mm
  5. Standoff= 3.00 mm

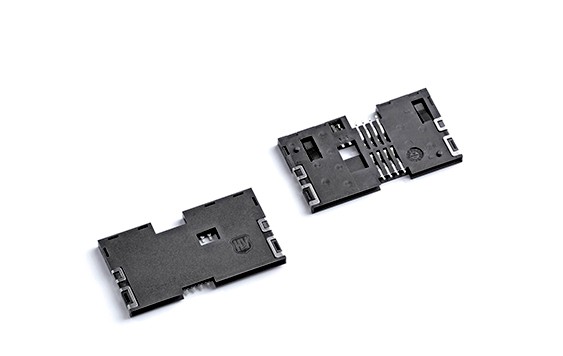

ICA-617 Type1

PDF Download
  1. 8 pin
  2. SMT Type (with post)
  3. Blade Switch: Normally Open
  4. Dim.: 56.00L x 31.10W x 3.65H mm

ICA-617 Type2

PDF Download
  1. 8 pin
  2. SMT Type (with post)
  3. Blade Switch: Normally Open
  4. Dim.: 56.00L x 31.10W x 3.65H mm

ICA-619

PDF Download
  1. 8 pin
  2. DIP Type
  3. Blade Switch: Normally Open or Close
  4. Dim.: 62.00L x 40.00W x H mm

    5. Dim.

Base Standoff Total "H"
6.25 1.40 7.56
6.25 2.15 8.40
6.25 2.75 9.00
6.25 3.15 9.40
6.25 3.50 9.75
6.25 5.55 11.80
