Connector FFC/FPC

A-Series Pitch 0.5

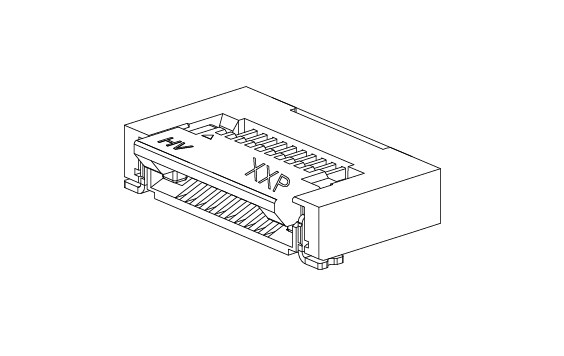

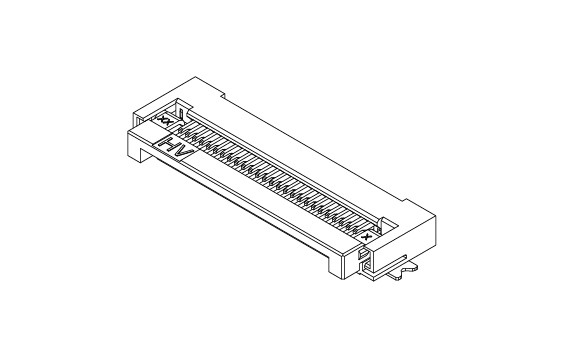

FCC-A51(Halogen-Free)

  1. Pitch 0.5mm, 04~40 pin
  2. SMT Type (With Holder)
  3. Dim.: 04~30pin:〔(Pin*0.5)+2.0〕L x 3.00 W x 0.98 H mm
  4. Dim.: 31~40pin:〔(Pin*0.5)+2.0〕L x 3.30 W x 0.98 H mm
  5. FPC/FFC Thickness: 0.30 mm
  6. Operation: Horizontal, Bottom Contact Type
  7. Front ZIF Type

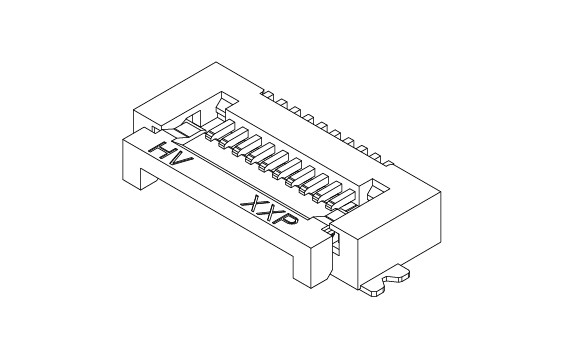

FCC-A52(Halogen-Free)

  1. Pitch 0.5mm, 04~60pin
  2. SMT Type (With Holder)
  3. Dim.:〔(Pin*0.5)+3.4〕L x 5.80 W x 2.00 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Horizontal, Bottom Contact Type
  6. Front ZIF Type

FCC-A52 TYPE2 (Halogen-Free)

  1. Pitch 0.5mm, 04~60pin
  2. SMT Type (With Holder)
  3. Dim.:〔(Pin*0.5)+3.4〕L x 5.80 W x 2.00 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Horizontal, Bottom Contact Type
  6. Front ZIF Type

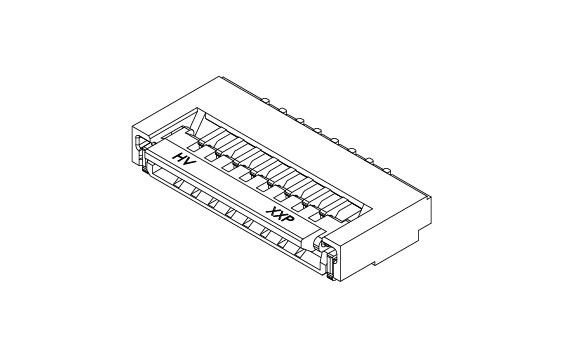

FCC-A53(Halogen-Free)

  1. Pitch 0.5mm, 04~53 pin
  2. SMT Type (With Holder)
  3. Dim.:〔(Pin*0.5)+4.4〕L x 4.10 W x 1.50 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Horizontal, Bottom Contact Type
  6. Front ZIF Type

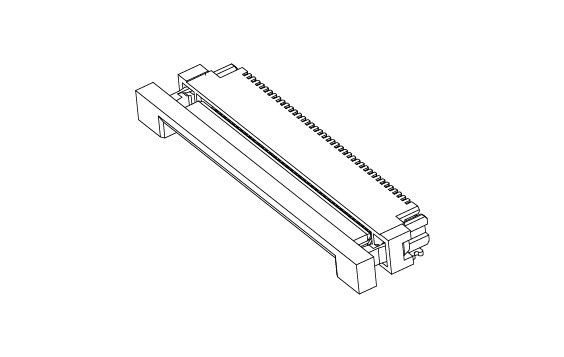

FCC-A54(Halogen-Free)

  1. Pitch 0.5mm, 04~65 pin
  2. SMT Type (With Holder)
  3. Dim.:〔(Pin*0.5)+6.5〕L x 4.80 W x 2.00 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Horizontal, Top Contact Type
  6. Slider Type

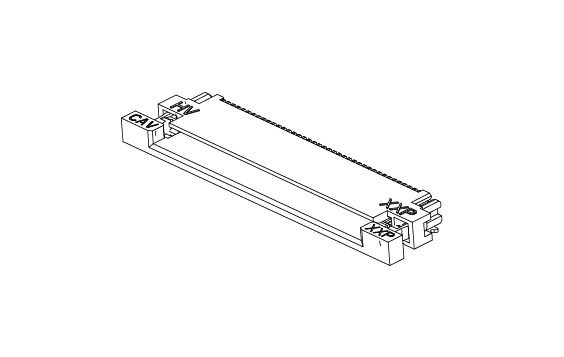

FCC-A54 TYPE3 (Halogen-Free)

  1. Pitch 0.5mm, 04~65 pin
  2. SMT Type (With Holder)
  3. Dim.:〔(Pin*0.5)+6.5〕L x 4.80 W x 2.00 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Horizontal, Top Contact Type
  6. Slider Type

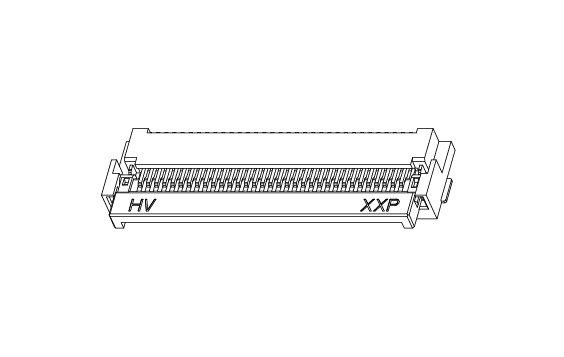

FCC-A55(Halogen-Free)

  1. Pitch 0.5mm, 04~40 pin
  2. SMT Type (With Holder)
  3. Dim.:〔(Pin*0.5)+4.9〕L x 6.15 W x 2.00 H mm
  4. FPC/FFC Thickness: 0.30 mm, with buckle
  5. Operation: Horizontal, Bottom Contact Type
  6. Front ZIF Type

FCC-A55 TYPE2 (Halogen-Free)

  1. Pitch 0.5mm, 04~40 pin
  2. SMT Type (With Holder)
  3. Dim.:〔(Pin*0.5)+4.9〕L x 6.15 W x 2.00 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Horizontal, Bottom Contact Type
  6. Front ZIF Type

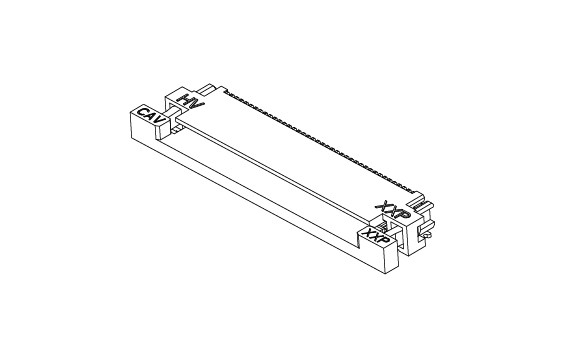

FCC-A58(Halogen-Free)

  1. Pitch 0.5mm, 04~65 pin
  2. SMT Type (With Holder)
  3. Dim.:〔(Pin*0.5)+6.5〕L x 4.80 W x 2.00 H mm
  4. FPC/FFC Thickness: 0.30 mm
  5. Operation: Horizontal, Bottom Contact Type
  6. Slider Type
