Smart Card Connector

500 Series

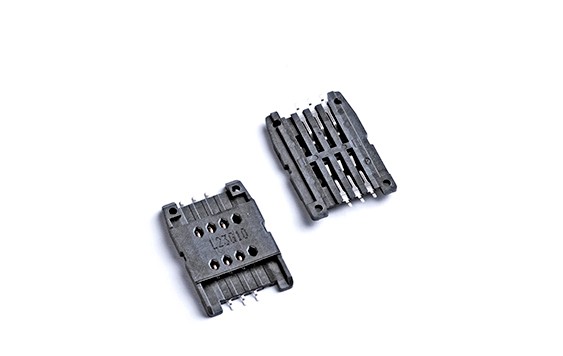

ICA-503

PDF Download
  1. 6, 8 pin
  2. SMT Type (post optional)
  3. Dim.: 25.50L x 17.20W x 2.50H mm
  4. Push Pull Type

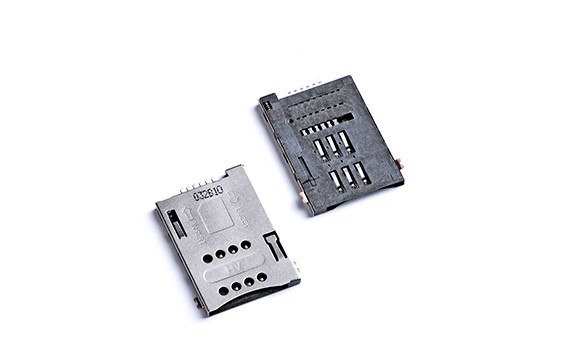

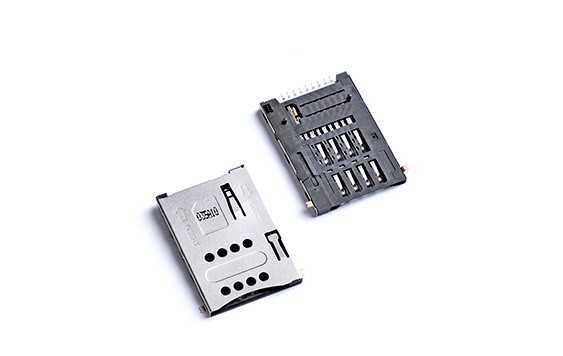

ICA-508 Type1

PDF Download
  1. 6, 8 pin
  2. SMT Type (post optional)
  3. Dim.: 27.55L x 18.70W x 1.90H mm
  4. Metal Cover: Push Push Type

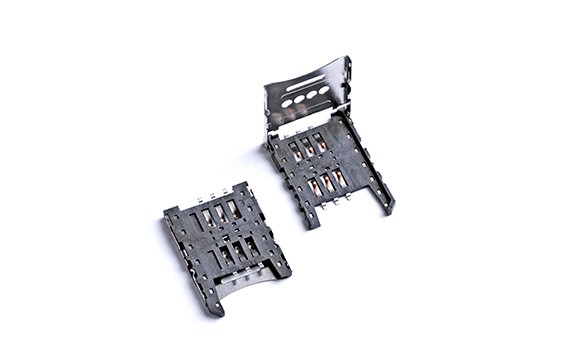

ICA-509 Type1

PDF Download
  1. 6 pin
  2. SMT Type (without post)
  3. Dim.: 25.50L x 17.70W x 1.95H mm
  4. Metal Cover: Hinge Type

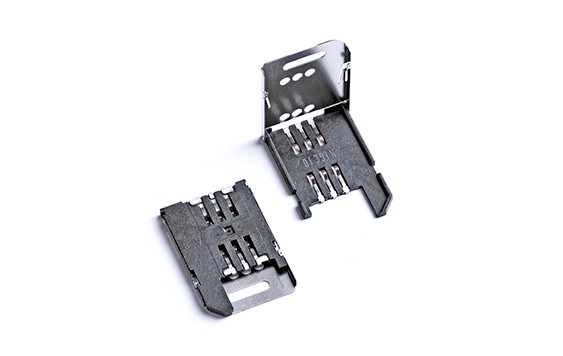

ICA-509 Type3

PDF Download
  1. 6 pin
  2. SMT Type (without post)
  3. Dim.: 24.60L x 17.60W x 1.80H mm
  4. Metal Cover: Hinge Type

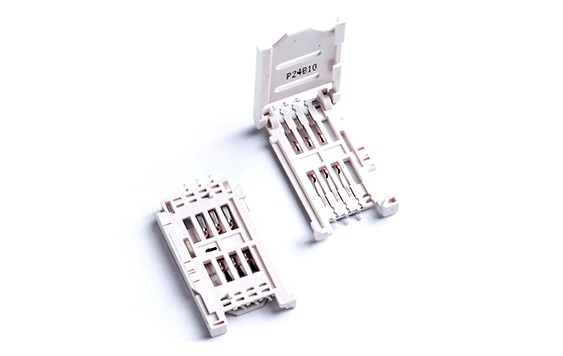

ICA-510

PDF Download
  1. 6, 8 pin
  2. SMT Type (post optional)
  3. Dim.: 29.65L x 17.20W x 3.00H mm
  4. Plastic Cover: Hinge Type
  5. Pastic Color:Natural

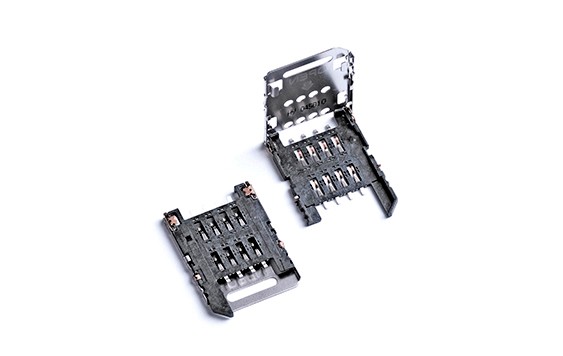

ICA-511

PDF Download
  1. 8 pin
  2. SMT Type (without post)
  3. Dim.: 25.55L x 18.70W x 1.70H mm
  4. Metal Cover: Hinge Type

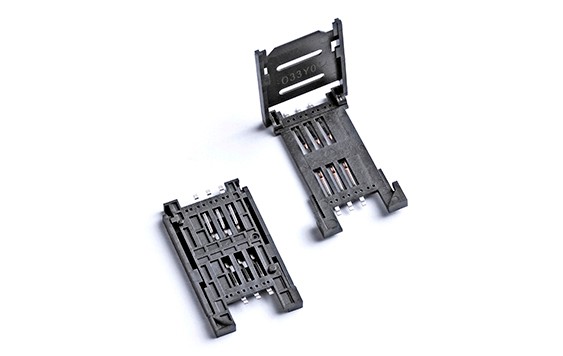

ICA-521 Black

PDF Download
  1. 6, 8 pin
  2. SMT Type (post optional)
  3. Dim.: 29.65L x 17.20W x 2.50H mm
  4. Plastic Cover: Hinge Type
  5. Plastic Color:Black or Natural optional

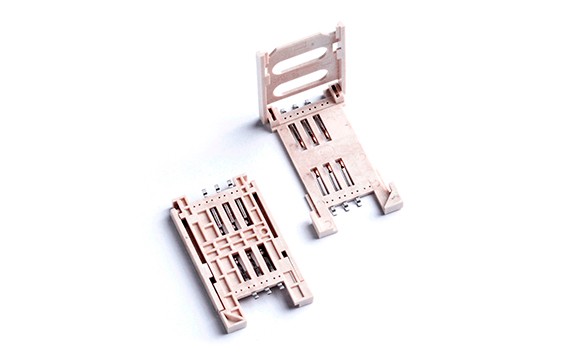

ICA-521 White

PDF Download
  1. 6, 8 pin
  2. SMT Type (post optional)
  3. Dim.: 29.65L x 17.20W x 2.50H mm
  4. Plastic Cover: Hinge Type
  5. Plastic Color:Black or Natural optional

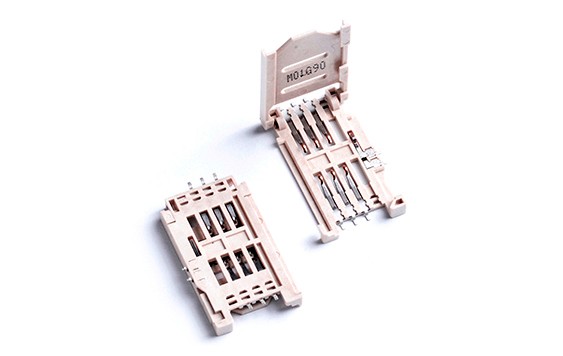

ICA-560

PDF Download
  1. 6, 8 pin
  2. SMT Type (post optional)
  3. Blade Switch: Normally Open
  4. Dim.: 29.65L x 17.20W x 3.00H mm
  5. Plastic Cover: Hinge Type
  6. Plastic Color: Natural

ICA-561

PDF Download
  1. 6, 8 pin
  2. SMT Type (post optional)
  3. Blade Switch: Normally Close
  4. Dim.: 26.60L x 18.70W x 2.00H mm
  5. Metal Cover: Push Push Type
  6. NDS Compliant
