Smart Card Connector

400 Series

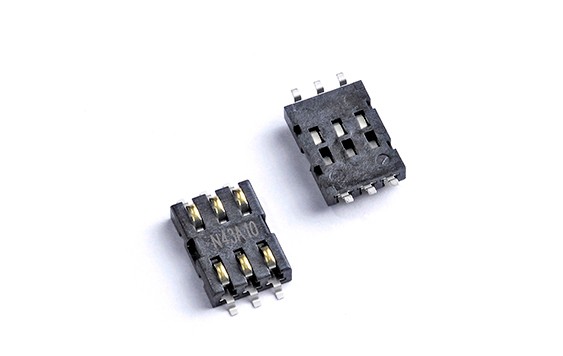

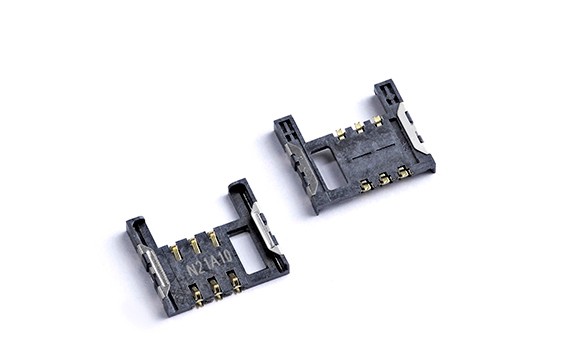

ICC-402

PDF Download
  1. 6 pin
  2. SMT Type (without post)
  3. Dim.: 11.80L x 8.70W x 2.60H mm

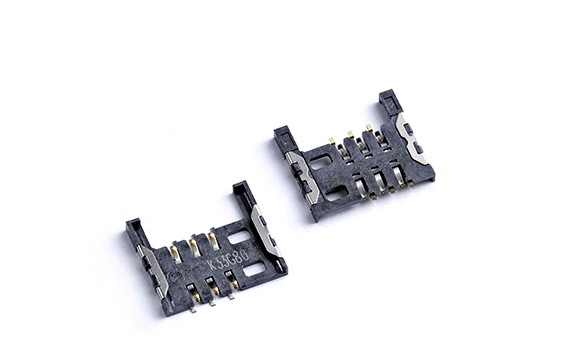

ICC-404

PDF Download
  1. 8 pin
  2. SMT Type (without post)
  3. Dim.: 11.80L x 10.62W x 2.60H mm

ICC-408 6pin

PDF Download
  1. 6 pin
  2. SMT Type (without post)
  3. Dim.: 11.70L x 8.40W x 3.00/4.50H mm

ICC-408 8pin

PDF Download
  1. 8 pin
  2. SMT Type (without post)
  3. Dim.: 11.70L x 11.00W x 4.50H mm

ICC-409 Type1

PDF Download
  1. ICC-409 Type1
  2. 6 pin
  3. SMT Type (without post)
  4. Dim.: 11.10L x 7.60W x1.50/ 1.80/ 2.00/ 2.40/ 2.60H mm

ICC-409 Type2

PDF Download
  1. 6 pin
  2. SMT Type (without post)
  3. Dim.: 11.30L x 7.62W x 5.50H mm

ICC-411

PDF Download
  1. 6, 8 pin
  2. SMT Type (post optional)
  3. Dim.: 15.70L x 16.40W x 2.60H mm

ICC-413

PDF Download
  1. 6 pin
  2. SMT Type (without post)
  3. Dim.: 15.85L x 16.50W x 3.00H mm

ICC-422 Type2

PDF Download
  1. 6, 8 pin
  2. SMT Type (without post)
  3. Dim.: 13.90L x 16.30W x 2.20H mm

ICC-423

PDF Download
  1. 6 pin
  2. SMT Type (post optional)
  3. Dim.: 13.90L x 16.30W x 1.80H mm
