Smart Card Connector

300 Series

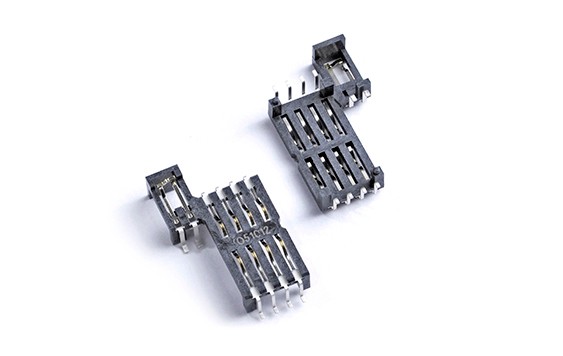

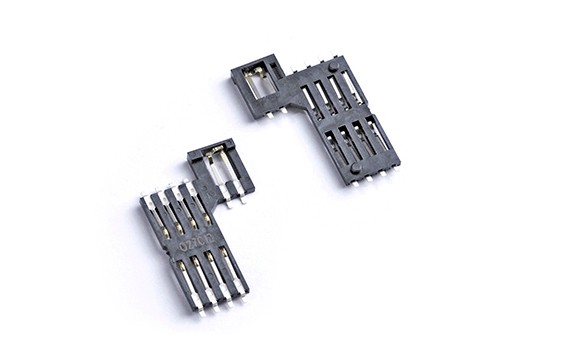

ICC-301

PDF Download
  1. 8 pin
  2. SMT Type (with post)
  3. Blade Switch: Normally Open
  4. Dim.: 28.77L x 18.97W x H mm

    5. Dim.

Base Standoff Total "H"
1.30 0.90 2.20
1.55   2.45
2.00   2.90

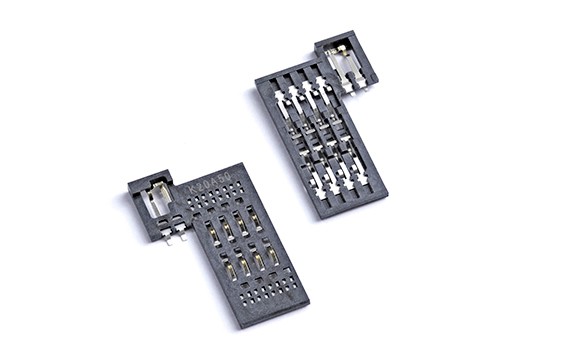

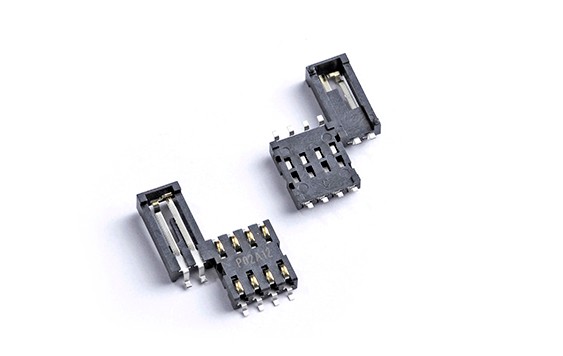

ICC-303

PDF Download
  1. 8 pin
  2. SMT Type (with post)
  3. Blade Switch: Normally Open
  4. Dim.: 22.80L x 17.65W x H mm

    5. Dim.

Base Standoff Total "H"
2.60 1.20 3.80
2.90 1.00 3.90

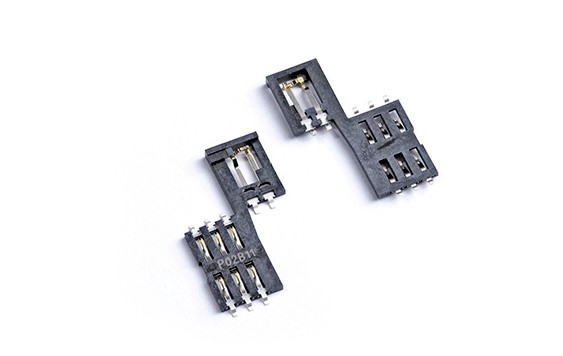

ICC-305

PDF Download
  1. 6 pin
  2. SMT Type (without post)
  3. Blade Switch: Normally Open
  4. Dim.: 21.25L x 11.18W x 2.50H mm

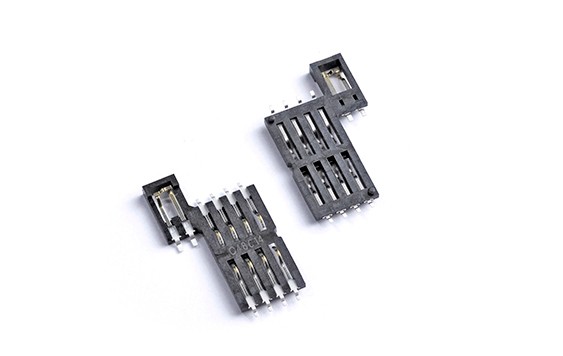

ICC-306 Type1

PDF Download
  1. 1. 8 pin
  2. 2. SMT type (with post)
  3. 3. Blade Switch: Normally Open
  4. 4. Dim.: 28.70L x 17.50W x H mm

    5. Dim.

Base Standoff Total "H"
2.50 0.90 3.40
3.00   3.90
3.50   4.40
4.30   5.20
4.70   5.60

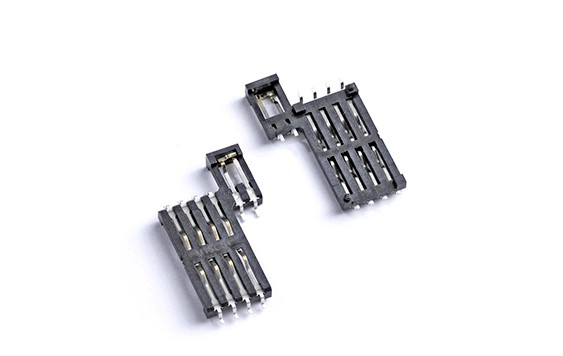

ICC-306 Type2

PDF Download
  1. 8 pin
  2. SMT type (with post)
  3. Blade Switch: Normally Open
  4. Dim.: 28.70L x 17.50W x H mm

    5. Dim.

Base Standoff Total "H"
1.50 0.90 2.40
2.00   2.90

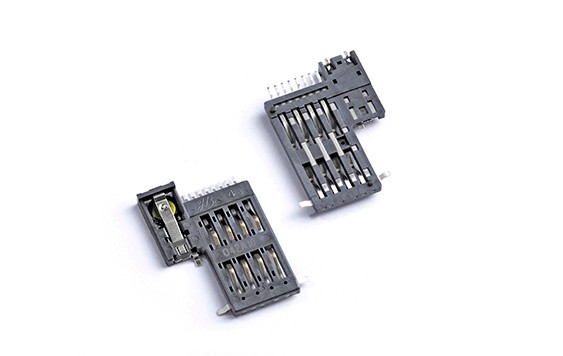

ICC-307

PDF Download
  1. 6 pin
  2. SMT Type (without post)
  3. Blade Switch: Normally Open
  4. Dim.: 26.50L x 17.00W x 1.10H mm

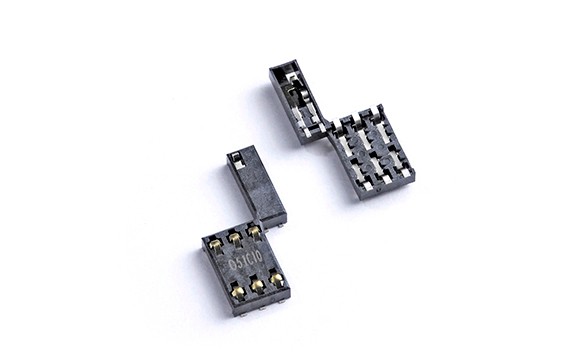

ICC-309

PDF Download
  1. 8 pin
  2. SMT Type (without post)
  3. Blade Switch: Normally Open
  4. Dim.: 32.67L x 19.80W x 1.40/ 2.00H mm

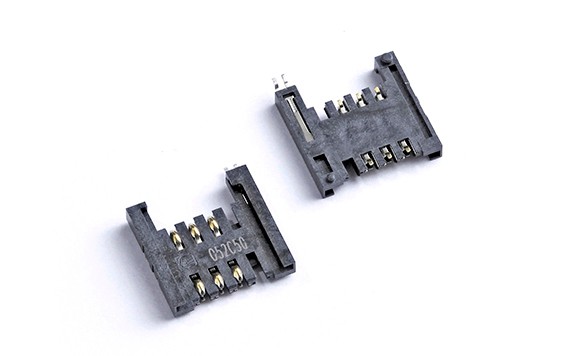

ICC-310

PDF Download
  1. 8 pin
  2. SMT Type (with post)
  3. Sealed Switch: Normally Open
  4. Dim.: 27.65L x 18.75W x 2.00H mm
  5. ESD Compliant
  6. Durability: 300,000 cycles min.

ICC-311

PDF Download
  1. 6, 8 pin
  2. SMT Type (post optional)
  3. Blade Switch: Normally Open
  4. Dim.: 15.70L x 16.40W x 2.60H mm

ICC-312 Type1

PDF Download
  1. 8 pin
  2. SMT type(with post)
  3. Blade Switch: Normally Open
  4. Dim.: 28.70L x 17.50W x H mm

    5. Dim.

Base Standoff Total "H"
1.40 0.90 2.30
2.50   3.40
3.00   3.90
3.50   4.40
4.20   5.10
4.70 0.91/1.10 5.60/5.80
