Insulation Tube

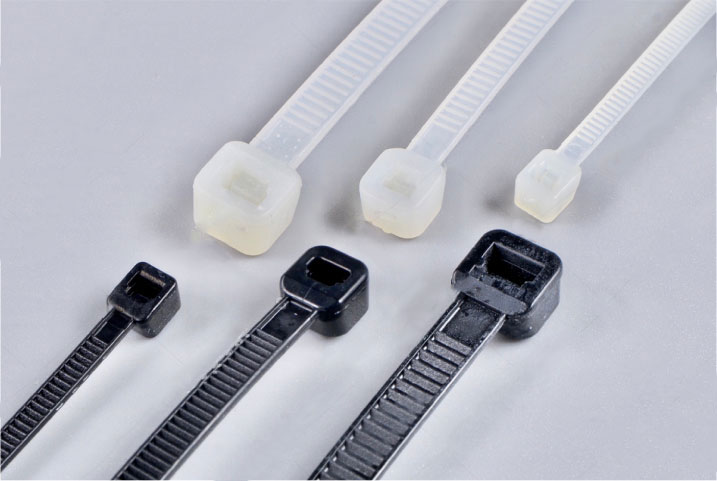

Cable Tie
Operating temperature: -40℃ to 85℃
Heat material could reach 120℃
Specification: UL approved E75050, UV. Heat Resistant Color
are available
Material: Nylon 66 94V-2.
Heat material could reach 120℃
Specification: UL approved E75050, UV. Heat Resistant Color
are available
Material: Nylon 66 94V-2.
Product sizes
| PART NO. | Approx. Length mm (inch) |
Approx. Width mm (inch) |
Max. Bundle Dia. mm (inch) |
Min. Loop Tensile Strengthkg (lbs) |
||
| White | Black | UL Cat. No. | ||||
| G080W2 | G080B2 | GT-80M | 80 (3.15) | 2.4 (0.09) | 15 (0.59) | 8.0 (17.68) |
| G090W2 | G090B2 | GT-90M | 90 (3.54) | 2.4 (0.09) | 16 (0.63) | 8.0 (17.68) |
| G100W2 | G100B2 | GT-100M | 100 (3.94) | 2.5 (0.10) | 22 (0.87) | 8.1 (18) |
| G120W2 | G120B2 | GT-120M | 120 (4.72) | 2.5 (0.10) | 30 (1.18) | 8.1 (18) |
| G140W2 | G140B2 | GT-140M | 140 (5.51) | 2.5 (0.10) | 33 (1.30) | 8.1 (18) |
| G150W2 | G150B2 | GT-150M | 150 (5.91) | 2.5 (0.10) | 35 (1.38) | 8.1 (18) |
| G160W2 | G160B2 | GT-160M | 160 (6.30) | 2.5 (0.10) | 40 (1.57) | 8.1 (18) |
| G200W2 | G200B2 | GT-200M | 200 (7.87) | 2.5 (0.10) | 53 (2.09) | 8.1 (18) |
| G250W3 | G250B3 | GT-250M | 250 (9.84) | 2.8 (0.11) | 65 (2.56) | 14 (31) |
| G300W3 | G300B3 | GT-300M | 300 (11.81) | 2.8 (0.11) | 76 (2.99) | 14 (31) |
| G120W6 | G120B6 | GT-120I | 120 (4.72) | 3.6 (0.14) | 30 (1.18) | 18.2 (40) |
| G140W6 | G140B6 | GT-140I | 140 (5.51) | 3.6 (0.14) | 33 (1.30) | 18.2 (40) |
| G150W6 | G150B6 | GT-150I | 150 (5.91) | 3.6 (0.14) | 35 (1.38) | 18.2 (40) |
| G180W6 | G180B6 | GT-180I | 180 (7.09) | 3.6 (0.14) | 44 (1.73) | 18.2 (40) |
| G200W6 | G200B6 | GT-200I | 200 (7.87) | 3.6 (0.14) | 53 (2.09) | 18.2 (40) |
| G215W6 | G215B6 | GT-215I | 215 (8.46) | 3.6 (0.14) | 56 (2.20) | 18.2 (40) |
| G250W6 | G250B6 | GT-250I | 250 (9.84) | 3.6 (0.14) | 65 (2.56) | 18.2 (40) |
| G300W6 | G300B6 | GT-300I | 300 (11.81) | 3.6 (0.14) | 76 (2.99) | 18.2 (40) |
| G370W6 | G370B6 | GT-370I | 370 (14.57) | 3.6 (0.14) | 102 (4.02) | 18.2 (40) |
| G120W4 | G120B4 | GT-120ST | 120 (4.72) | 4.8 (0.19) | 24 (0.94) | 22.2 (50) |
| G150W4 | G150B4 | GT-150ST | 150 (5.91) | 4.8 (0.19) | 35 (1.38) | 22.2 (50) |
| G160W4 | G160B4 | GT-160ST | 160 (6.30) | 4.8 (0.19) | 38 (1.50) | 22.2 (50) |
| G190W4 | G190B4 | GT-190ST | 188 (7.40) | 4.8 (0.19) | 46 (1.81) | 22.2 (50) |
| G200W4 | G200B4 | GT-200ST | 200 (7.87) | 4.8 (0.19) | 50 (1.97) | 22.2 (50) |
| G216W4 | G216B4 | GT-216ST | 217 (8.54) | 4.8 (0.19) | 53 (2.09) | 22.2 (50) |
| G250W4 | G250B4 | GT-250ST | 250 (9.84) | 4.8 (0.19) | 60 (2.36) | 22.2 (50) |
| G266W4 | G266B4 | GT-266ST | 265 (10.43) | 4.8 (0.19) | 65 (2.56) | 22.2 (50) |
| G280W4 | G280B4 | GT280ST | 280 (11.02) | 4.8 (0.19) | 70 (2.76) | 22.2 (50) |
| G300W4 | G300B4 | GT-300ST | 300 (11.81) | 4.8 (0.19) | 76 (2.99) | 22.2 (50) |
| G370W4 | G370B4 | GT-370ST | 370 (14.75) | 4.8 (0.19) | 102 (4.02) | 22.2 (50) |
| G380W4 | G390B4 | GT-380ST | 390 (15.35) | 4.8 (0.19) | 105 (4.13) | 22.2 (50) |
| G430W4 | G430B4 | GT-430ST | 430 (16.93) | 4.8 (0.19) | 110 (4.33) | 22.2 (50) |
| G450W4 | G450B4 | GT-450ST | 450 (17.72) | 4.8 (0.19) | 116 (4.57) | 22.2 (50) |
| G530W4 | G530B4 | GT-530ST | 530 (20.87) | 4.8 (0.19) | 140 (5.51) | 22.2 (50) |
| G550W4 | G550B4 | GT-550ST | 550 (21.65) | 4.8 (0.19) | 145 (5.71) | 22.2 (50) |
| G635W4 | G635B4 | GT-635ST | 635 (25.00) | 4.8 (0.19) | 190 (7.48) | 22.2 (50) |
| G685W4 | G685B4 | GT-685ST | 685 (26.97) | 4.8 (0.19) | 205 (8.07) | 22.2 (50) |
| G730W4 | G730B4 | GT730ST | 735 (28.94) | 4.8 (0.19) | 224 (8.82) | 40 (88) |
| G830W4 | G830B4 | GT-830ST | 830 (32.68) | 4.8 (0.19) | 254 (10.00) | 40 (88) |
| G920W4 | G920B4 | GT-920ST | 925 (36.42) | 4.8 (0.19) | 263 (10.35) | 40 (88) |
| G150W7 | G150B7 | GT150HD | 150 (5.91) | 7.6 (0.30) | 33 (1.30) | 54.4 (120) |
| G200W7 | G200B7 | GT-200HD | 200 (7.87) | 7.6 (0.30) | 50 (1.97) | 54.4 (120) |
| G240W7 | G240B7 | GT-240HD | 240 (9.45) | 7.6 (0.30) | 63 (2.48) | 54.4 (120) |
| G250W7 | G250B7 | GT-250HD | 250 (9.84) | 7.6 (0.30) | 65 (2.56) | 54.4 (120) |
| G280W7 | G280B7 | GT-280HD | 280 (11.02) | 7.6 (0.30) | 71 (2.80) | 54.4 (120) |
| G300W7 | G300B7 | GT-300HD | 300 (11.81) | 7.6 (0.30) | 76 (2.99) | 54.4 (120) |
| G370W7 | G370B7 | GT-370HD | 368 (14.49) | 7.6 (0.30) | 102 (4.02) | 54.4 (120) |
| G430W7 | G430B7 | GT-430HD-S | 430 (16.93) | 7.6 (0.30) | 125 (4.92) | 54.4 (120) |
| G450W7 | G450B7 | GT-450HD-S | 450 (17.72) | 7.6 (0.30) | 132 (5.20) | 54.4 (120) |
| G540W7 | G540B7 | GT-540HD | 530 (20.87) | 7.6 (0.30) | 140 (5.51) | 54.4 (120) |
| G430W9 | G430B9 | GT-430HD | 430 (16.93) | 9.0 (0.35) | 110 (4.33) | 79.4 (175) |
| G450W9 | G450B9 | GT-450HD | 450 (17.72) | 9.0 (0.35) | 120 (4.72) | 79.4 (175) |
| G530W9 | G530B9 | GT-530HD | 526 (20.71) | 9.0 (0.35) | 140 (5.51) | 79.4 (175) |
| G630W9 | G630B9 | GT-630HD | 610 (24.02) | 9.0 (0.35) | 187 (7.00) | 79.4 (175) |
| G710W9 | G710B9 | GT-710HD | 710 (27.95) | 9.0 (0.35) | 190 (7.48) | 79.4 (175) |
| G780W9 | G780B9 | GT-780HD | 776 (30.55) | 9.0 (0.35) | 228 (8.98) | 79.4 (175) |
| G830W9 | G830B9 | GT-830HD | 815 (32.09) | 9.0 (0.35) | 239 (9.41) | 79.4 (175) |
| G920W9 | G920B9 | GT-920HD | 912 (35.91) | 9.0 (0.35) | 263 (10.35) | 79.4 (175) |
| G1020W9 | G1020B9 | GT-1020HD | 1020 (40.16) | 9.0 (0.35) | 295 (11.61) | 79.4 (175) |
| G1070W9 | G1070B9 | GT-1070HD | 1070 (42.00) | 9.0 (0.35) | 320 (12.60) | 79.4 (175) |
| G1220W9 | G1220B9 | GT1-220HD | 1220 (48.00) | 9.0 (0.35) | 365 (14.37) | 79.4 (175) |
| G1530W9 | G1530B9 | GT1-530HD | 1530 (60.23) | 9.0 (0.35) | 460 (18.15) | 79.4 (175) |
