Connector

USB 3.0

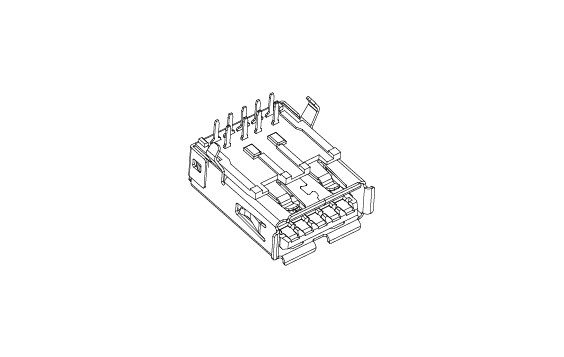

USB-U30AR01

  1. 9 pin
  2. A Type
  3. R/A 90°, DIP
  4. Dim.: 16.50L x 14.60W x 7.22H mm

USB-U30AR05

  1. 9 pin
  2. A Type
  3. Vertical, DIP
  4. Dim.: 14.80L x 7.40W x 14.45H mm

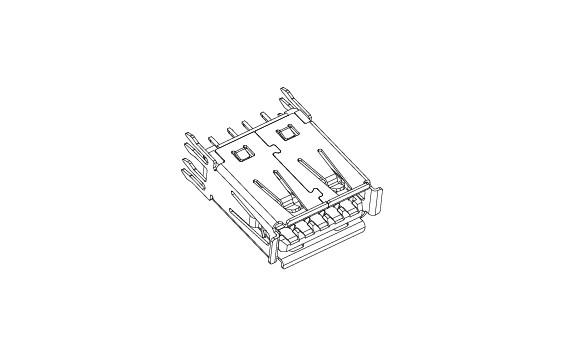

USB-U30AR06

  1. 9 pin
  2. A Type
  3. R/A 90°, DIP
  4. Dim.: 16.50L x 14.60W x 8.40H mm

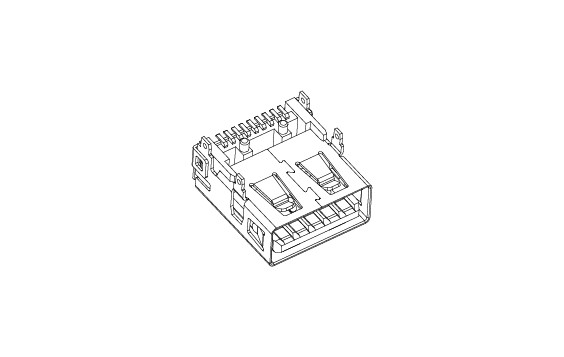

USB-U30AR07

  1. 9 pin
  2. A Type
  3. R/A 90°, DIP
  4. Sink Type
  5. Dim.: 13.90L x 13.10W x 3.06H mm

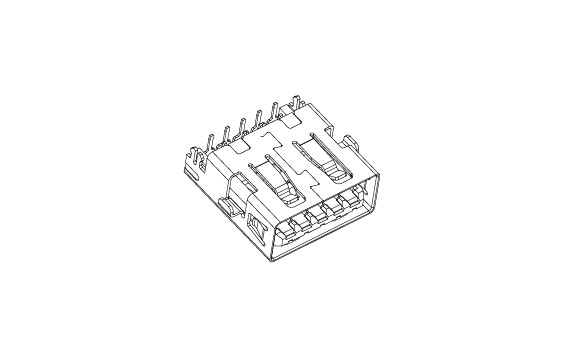

USB-U30AR08

  1. 9 pin
  2. A Type
  3. R/A 90°, SMT (with post)
  4. Dim.: 14.50L x 13.10W x 6.90H mm

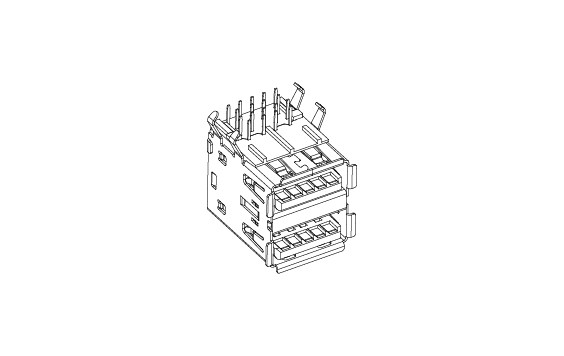

USB-U32AR01

  1. 18 pin, Dual Type
  2. A Type
  3. R/A 90°, DIP
  4. Dim.: 17.50L x 15.00W x 15.50H mm

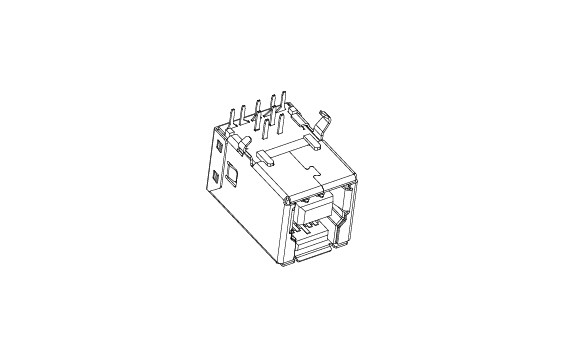

USB-U30BR01

  1. 9 pin
  2. B Type
  3. R/A 90°, DIP
  4. Dim.: 18.35L x 12.00W x 12.90H mm

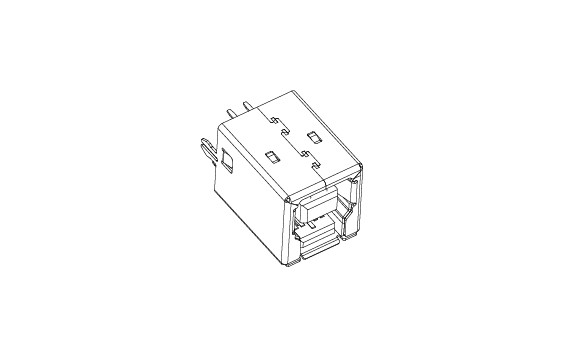

USB-U30BR02

  1. 9 pin
  2. B Type
  3. Vertical, DIP
  4. Dim.: 12.00L x 12.60W x 16.00H mm
