Smart Card Connector

800 Series

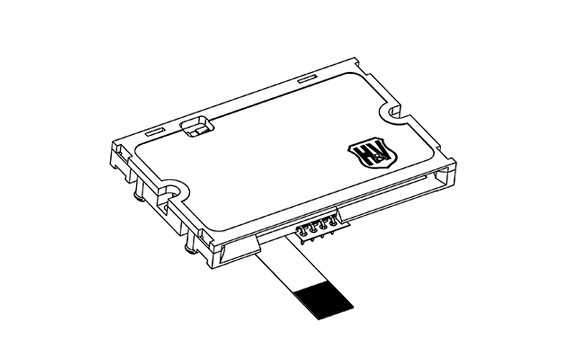

ICA-803 Type1

  1. 8 pin
  2. Blade Switch: Normally Open or Close
  3. Friction Technology
  4. Dim.: 62.00L x 40.00W x 6.25H mm
  5. FPC pitch 1.0 or 1.25 optional, L=140 mm

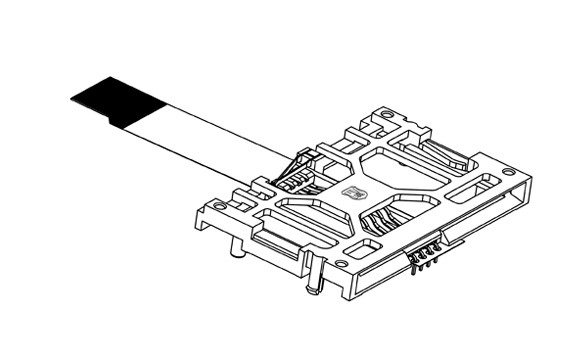

ICA-803 Type2

  1. 8 pin
  2. Blade Switch: Normally Open
  3. Friction Technology
  4. Dim.: 62.00L x 40.00W x 6.25H mm
  5. FPC pitch 1.0 mm

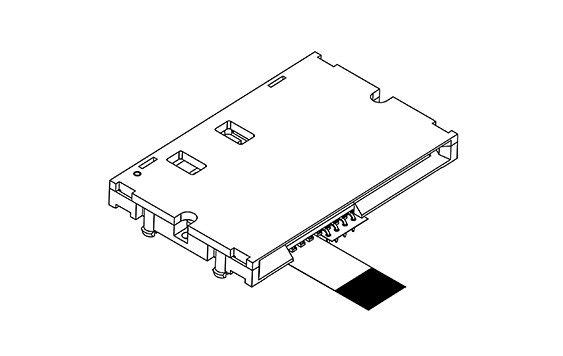

ICA-809

  1. 8 pin
  2. Blade Switch: Normally Open or Close
  3. Friction Technology
  4. Dim.: 62.00L x 40.00W x 6.25H mm
  5. FPC pitch 1.0 or 1.25 optional, L=140 mm

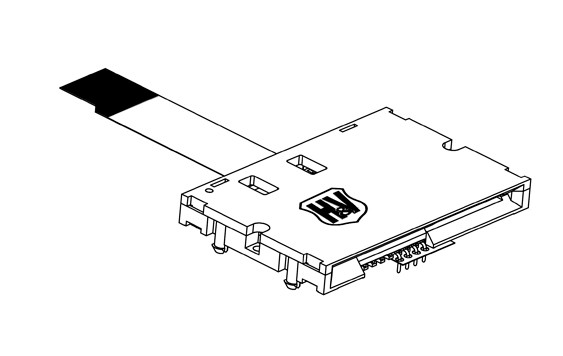

ICA-853 Type2

  1. 8 pin
  2. Blade Switch: Normally Open
  3. Friction Technology
  4. Dim.: 62.00L x 40.00W x 6.25H mm
  5. FPC pitch 1.0 mm
