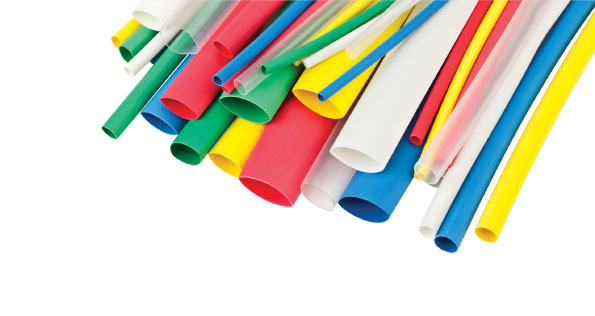

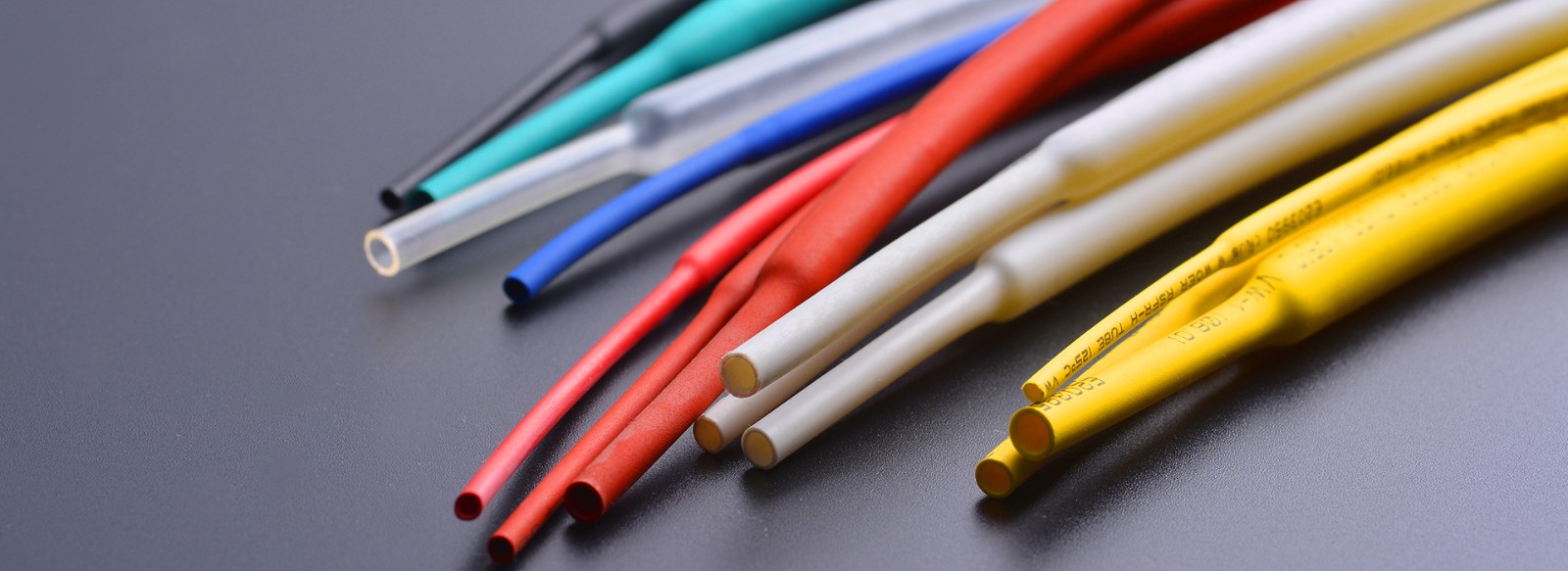

Heat Shrinkable Tube
HAMBURG H-2(CB)
Application
HAMBURG H-2(CB) is halogen free, environmentally friendly, flexible, ultra thin-wall, flexible, flame-retardant, irradiated cross-linking heat-shrinkable modified polyolefin tubing, It is designed for applications that require an ultra thin wall for rapid shrinking and space saving. Low shrink temperature further reduces installation time and the risk of damage to temperature-sensitive components.
Feature/Benefits
- Shrink ration:2:1
- Low shrink temperature
- Ultra thin-wall, rapid shrinking.
- Very flexible, flame-retardant
- No added halogens, free of PCBs, PCPs, polybrominated biphenyls (PBBs), polybrominated biphenyl oxides and others (PBBOs, PBBEs, and PBDEs) and toxic heavy metal (Pb, Cd, Hg, Cr6+) compounds, which are classified as environmentally hazardous substances. Conforms to European RoHS environmental directive.
- Wide range of sizes and colors
Operation Temperature
- Temperature range: -55℃~125℃
- Shrink temperature: 70℃
- Full recovery temperature: 125℃
- Longitudinal shrinking: -5 ± 5%
Standards/Approvals
- UL224 E255394 125℃ 300V VW-1
- CSA C22.2 238014 125℃ 150V VW-1
Specification values
Property | Unit | Test method | Standard | |
---|---|---|---|---|
Physical | Tensile strength | Mpa | GB/T1040 | ≧10.4 |
Elongation | % | GB/T1040 | ≧200 | |
Tensile strength after aging | Mpa | UL224 158℃x168hr |
≧7.3 | |
Elongation after aging | % | UL224 158℃x168hr |
≧100 | |
Heat Resistance | - | UL224 250℃x4hr |
No viscidity, No cracking | |
Cold blend | - | UL224 -30℃x4hr |
No cracking | |
Electrical | Dielectric strength | KV/mm | GB/T1408 | ≧15 |
Dielectric withstand | V | UL224 | No breaking for 2500v | |
Volume resistance | Ω.cm | GB/T1410 | ≧1x1014 | |
Chemical | Anti Corrosin | - | UL224 158℃x168hr |
Pass |
Copper stability | - | UL224 158℃x168hr |
Pass | |
Flammability | - | UL224 | VW-1 |
Product size
Size(mm) | (I.D.) Inside diameter |
(W.T.) Wall Thickness |
(I.D.) Inside diameter |
(W.T.) Wall Thickness |
(M/Spool) | (mm) |
---|---|---|---|---|---|---|
Φ0.6 | 0.9 ± 0.2 | 0.13 ± 0.05 | ≤0.40 | 0.20 ± 0.10 | 400 | 0.4~0.7 |
Φ1.0 | 1.4 ± 0.2 | 0.13 ± 0.05 | ≤0.65 | 0.20 ± 0.10 | 400 | 0.7~1.0 |
Φ1.5 | 1.9 ± 0.2 | 0.13 ± 0.05 | ≤0.90 | 0.20 ± 0.10 | 400 | 0.9~1.4 |
Φ2.0 | 2.4 ± 0.2 | 0.13 ± 0.05 | ≤1.00 | 0.22 ± 0.10 | 400 | 1.1~1.8 |
Φ2.5 | 2.9 ± 0.2 | 0.13 ± 0.05 | ≤1.30 | 0.25 ± 0.10 | 400 | 1.4~2.3 |
Φ3.0 | 3.4 ± 0.2 | 0.13 ± 0.05 | ≤1.50 | 0.28 ± 0.10 | 400 | 1.6~2.7 |
Φ3.5 | 3.9 ± 0.2 | 0.13 ± 0.05 | ≤1.80 | 0.28 ± 0.10 | 400 | 1.9~3.2 |
Φ4.0 | 4.4 ± 0.2 | 0.15 ± 0.05 | ≤2.00 | 0.30 ± 0.10 | 400 | 2.1~3.6 |
Φ4.5 | 4.9 ± 0.2 | 0.15 ± 0.05 | ≤2.30 | 0.30 ± 0.10 | 200 | 2.4~4.0 |
Φ5.0 | 5.5 ± 0.2 | 0.15 ± 0.05 | ≤2.50 | 0.32 ± 0.10 | 200 | 2.6~4.5 |
Φ6.0 | 6.5 ± 0.2 | 0.15 ± 0.05 | ≤3.00 | 0.32 ± 0.10 | 200 | 3.1~5.4 |
Φ7.0 | 7.5 ± 0.3 | 0.15 ± 0.05 | ≤3.50 | 0.32 ± 0.10 | 200 | 3.7~6.3 |
Φ8.0 | 8.5 ± 0.3 | 0.15 ± 0.05 | ≤4.00 | 0.32 ± 0.10 | 200 | 4.2~7.2 |
Φ9.0 | 9.5 ± 0.3 | 0.15 ± 0.05 | ≤4.50 | 0.35 ± 0.10 | 200 | 4.7~8.0 |
Φ10.0 | 10.5 ± 0.3 | 0.15 ± 0.05 | ≤5.00 | 0.35 ± 0.10 | 200 | 5.2~9.0 |
Φ11.0 | 11.5 ± 0.3 | 0.18 ± 0.05 | ≤5.50 | 0.40 ± 0.10 | 200 | 5.7~10.0 |
Φ12.0 | 12.5 ± 0.3 | 0.20 ± 0.05 | ≤6.00 | 0.40 ± 0.10 | 200 | 6.2~11.0 |
Φ13.0 | 13.5 ± 0.3 | 0.20 ± 0.10 | ≤6.50 | 0.40 ± 0.10 | 200 | 6.7~12.0 |
Φ14.0 | 14.5 ± 0.3 | 0.20 ± 0.10 | ≤7.00 | 0.40 ± 0.10 | 200 | 7.3~13.0 |
Φ15.0 | 15.5 ± 0.4 | 0.20 ± 0.05 | ≤7.50 | 0.40 ± 0.10 | 200 | 7.8~14.0 |
Φ16.0 | 16.5 ± 0.4 | 0.22 ± 0.05 | ≤8.00 | 0.40 ± 0.10 | 200 | 8.3~15.0 |
Φ18.0 | 18.5 ± 0.4 | 0.22 ± 0.05 | ≤9.00 | 0.42 ± 0.10 | 200 | 9.3~17.0 |
Φ20.0 | 20.5 ± 0.5 | 0.25 ± 0.05 | ≤10.00 | 0.45 ± 0.10 | 200 | 10.5~19.0 |
Order Information
- Color: Black. other colors are available upon request.
- Nonstandard size: Special sizes are available upon request.
- Standard packaging: On spools, Cut pieces are available upon request.
- Ordering description: Specify product type, size (mm or inch) and color.
