Connector

USB 2.0

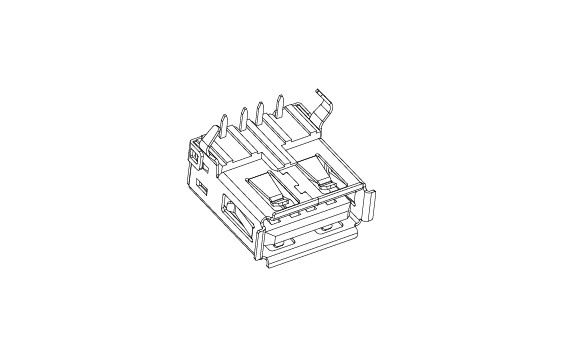

USB-U20AR01

  1. 4 pin
  2. A Type
  3. R/A 90°, DIP
  4. Dim.: 14.10L x 14.60W x 7.55H mm

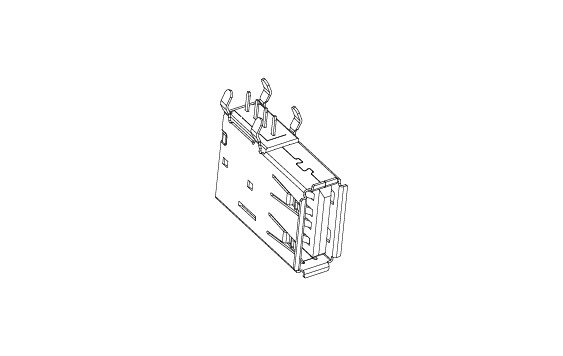

USB-U20AR02

  1. 4 pin
  2. A Type, Upright Type
  3. R/A 90°, DIP
  4. Dim.: 19.20L x 7.20W x 14.50H mm

USB-U20AR06

  1. 4 pin
  2. A Type
  3. Vertical, DIP
  4. Dim.: 14.60L x 7.00W x 15.00H mm

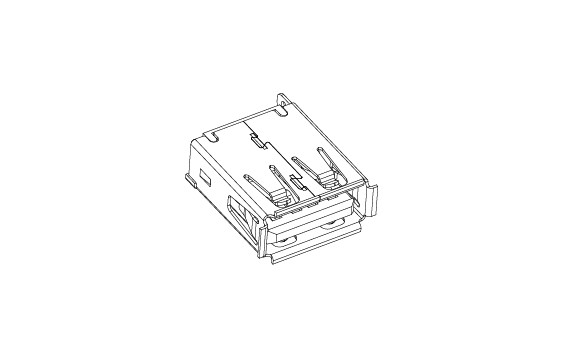

USB-U20AR07

  1. 4 pin
  2. A Type
  3. R/A 90°, SMT (with post)
  4. Dim.: 13.70L x 14.50W x 7.70H mm

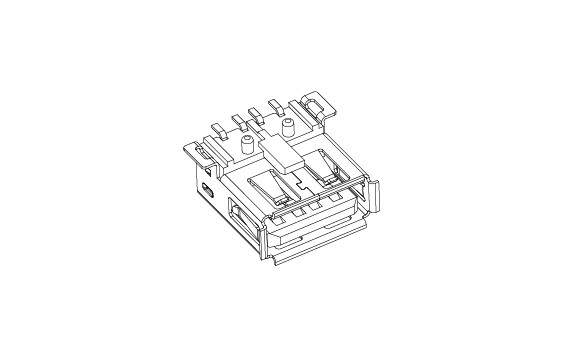

USB-U20AR08

  1. 4 pin
  2. A Type
  3. R/A 90°, SMT (with post)
  4. Sink Type
  5. Dim.: 14.10L x 14.50W x 3.90H mm

USB-U20AR09

  1. 4 pin
  2. A Type
  3. Vertical, Solder Type
  4. Dim.: 14.60L x 7.00W x 15.40H mm

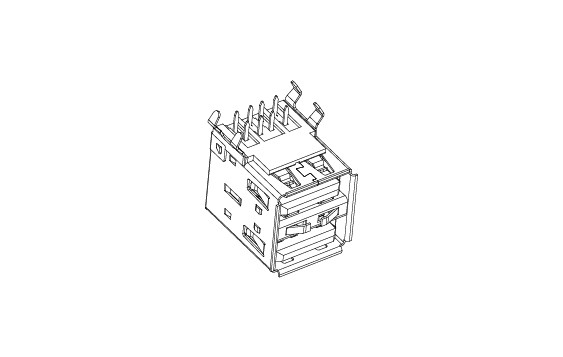

USB-U22AR01

  1. 8 pin, Dual Type
  2. A Type
  3. R/A 90°, DIP
  4. Dim.: 17.65L x 14.40W x 15.60H mm

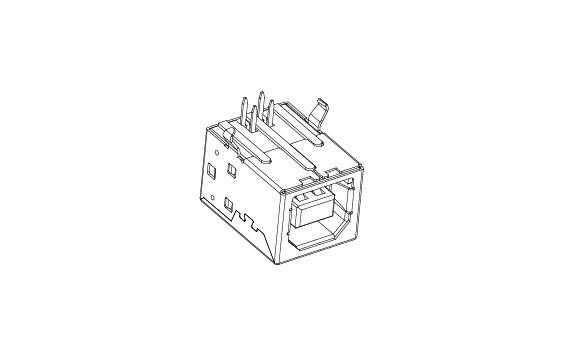

USB-U20BR01

  1. 4 pin
  2. B Type
  3. R/A 90°, DIP
  4. Dim.: 16.20L x 12.10W x 10.80H mm
