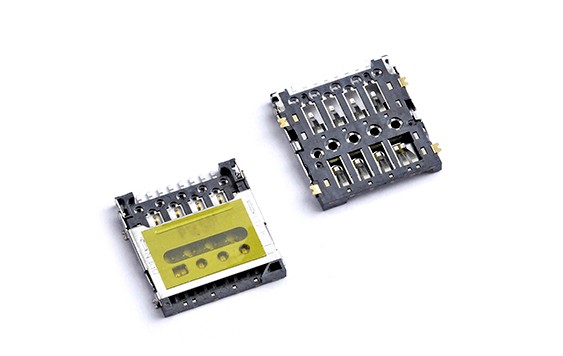

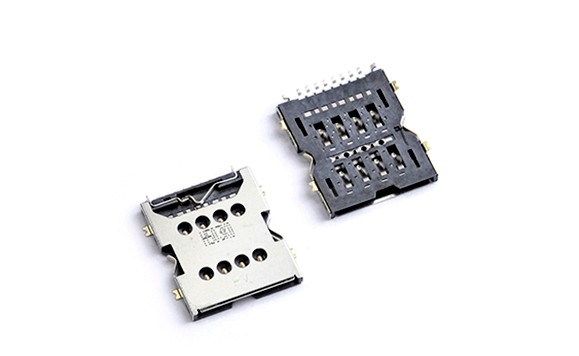

Smart Card Connector

M Series

ICC-M01

PDF Download
  1. 6, 8 pin
  2. SMT Type (without post)
  3. Dim.: 13.28L x 13.70W x 2.60H mm
  4. Metal Holder: Push Pull Type

ICC-M02

PDF Download
  1. 6, 8 pin
  2. SMT Type (without post)
  3. Dim.: 17.95L x 15.30W x 1.80H mm
  4. Metal Cover: Hinge Type

ICC-M03

PDF Download
  1. 8 pin
  2. SMT Type (without post)
  3. Dim.: 18.80L x 15.85W x 1.70H mm
  4. Blade Switch: Normally Close
  5. Metal Cover: with Tray Type (Tray exclude, Metal material only)

ICC-M06 Type1

PDF Download
  1. 6, 8 pin
  2. SMT Type (without post)
  3. Dim.: 15.10L x 13.00W x 1.30H mm
  4. Metal Cover: Push Pull Type

ICC-M06 Type3

PDF Download
  1. 8 pin
  2. SMT Type (without post)
  3. Dim.: 14.15L x 13.40W x 1.50H mm
  4. Metal Cover: Push Pull Type

ICC-M07 Type2

PDF Download
  1. 8 pin
  2. SMT Type (with post)
  3. Dim.: 18.80L x 17.50W x 1.80H mm
  4. Blade Switch: Normally Close
  5. Metal Cover: with Tray Type (Tray exclude, Metal material only)

ICC-M07 Type5

PDF Download
  1. 8 pin
  2. SMT Type (with post)
  3. Dim.: 18.80L x 17.50W x 2.00H mm
  4. Blade Switch: Normally Close
  5. Metal Cover: with Tray Type (Tray Metal material only)

ICC-M08

PDF Download
  1. 8 pin
  2. SMT Type (without post)
  3. Dim.: 16.40L x 14.34W x 1.30H mm
  4. Blade Switch: Normally Close
  5. Metal Cover: Push Push Type

ICC-M09

PDF Download
  1. 6 pin
  2. SMT Type (with post)
  3. Dim.: 22.60L x 15.49W x 2.05H mm
  4. Blade Switch: Normally Open
  5. Metal Cover: with Tray Type (Tray exclude, Metal or Plastic material optional)

ICC-M10

PDF Download
  1. 8 pin
  2. SMT Type (without post)
  3. Dim.: 15.90Lx 14.90Wx 1.50H mm
  4. Blade Switch: Normally Open
  5. Metal Cover: Hinge Type
  6. Durability: 3,000 cycles min.
