Smart Card Connector

T Series

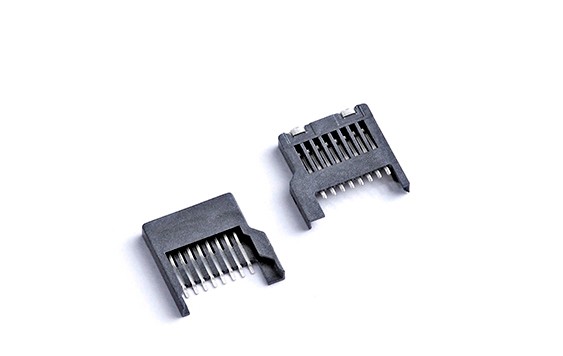

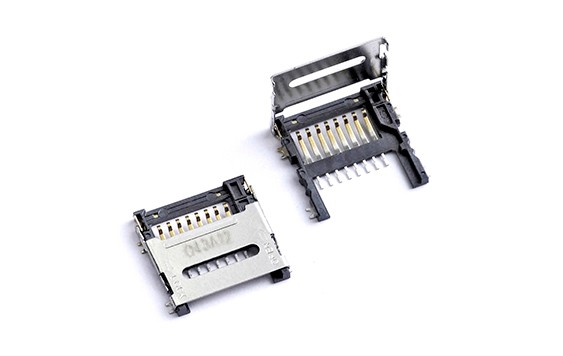

MCA-T01 Type2

PDF Download
  1. 8 pin
  2. SMT Type (without post)
  3. Metal Cover: Hinge Type
  4. Dim.: 13.55L x 13.65W x 1.55H mm

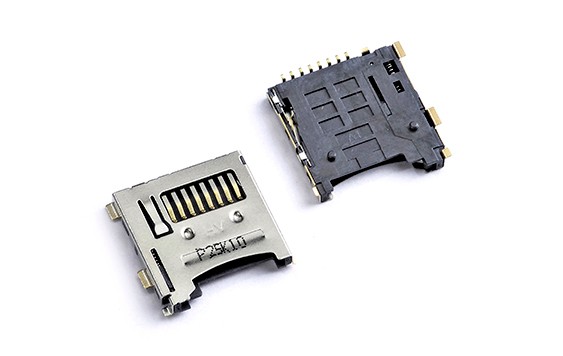

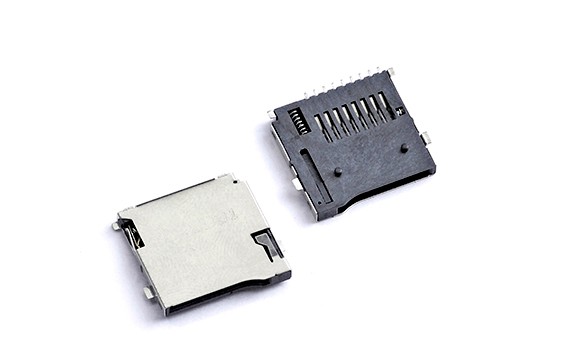

MCA-T02

PDF Download
  1. 8 pin
  2. SMT Type (without post)
  3. Push Push Type
  4. Dim.: 15.20L x 14.00W x 1.88H mm

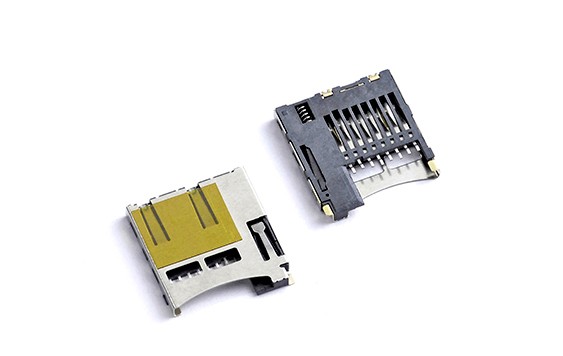

MCA-T05

PDF Download
  1. 8 pin, Reverse Type
  2. SMT Type (without post)
  3. Push Push Type
  4. Dim.: 16.10L x 15.20W x 1.95H mm
  5. Blade Switch: Normally Open

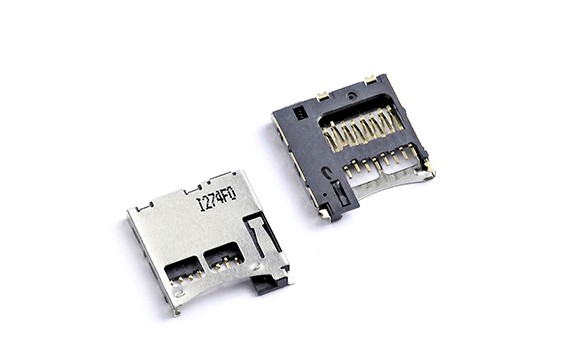

MCA-T07 Type1

PDF Download
  1. 8 pin
  2. SMT Type (without post)
  3. Push Push Type
  4. Dim.: 14.90L x 14.24W x 1.45H mm
  5. Blade Switch: Normally Open

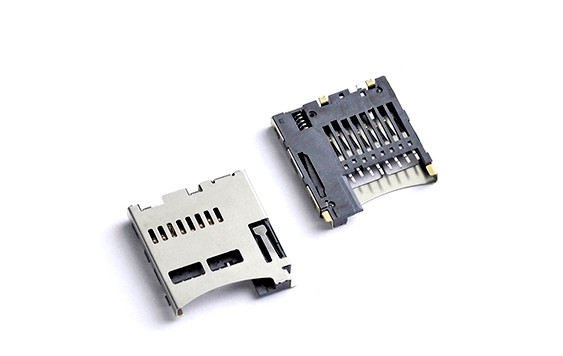

MCA-T07 Type2

PDF Download
  1. 8 pin
  2. SMT Type (without post)
  3. Push Push Type
  4. Dim.: 14.95L x 14.10W x 1.45H mm
  5. Blade Switch: Normally Open

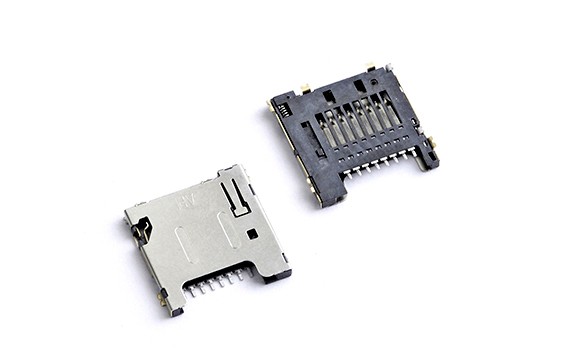

MCA-T08

PDF Download
  1. 8 pin
  2. SMT Type (without post)
  3. Metal Cover: Hinge Type
  4. Dim.: 14.20L x 14.20W x 1.70H mm

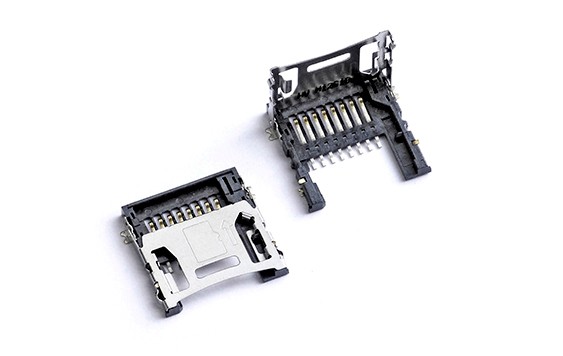

MCA-T11

PDF Download
  1. 8 pin
  2. SMT Type (with post)
  3. Push Push Type
  4. Dim.: 14.65L x 14.80W x 1.85H mm
  5. Blade Switch: Normally Open

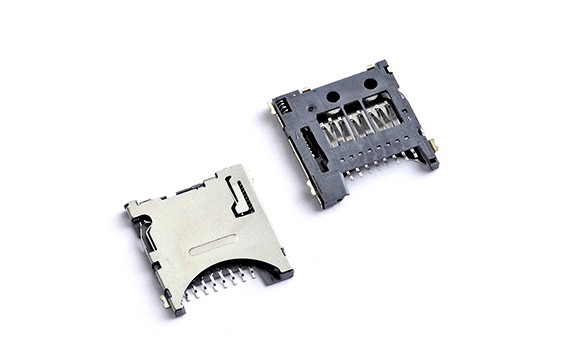

MCA-T12

PDF Download
  1. 8 pin
  2. SMT Type (with post)
  3. Push Pull Type
  4. Dim.: 11.80L x 12.16W x 1.93H mm

MCA-T13

PDF Download
  1. 8 pin
  2. SMT Type (without post)
  3. Push Pull Type
  4. Dim.: 15.25L x 14.05W x 1.90H mm
  5. Blade Switch: Normally Close

MCA-T16

PDF Download
  1. 8 pin
  2. SMT Type (without post)
  3. Push Push Type
  4. Dim.: 15.20L x 14.00W x 1.88H mm
  5. Blade Switch: Normally Open
